SELECT A DIAGRAM

01 - Cover

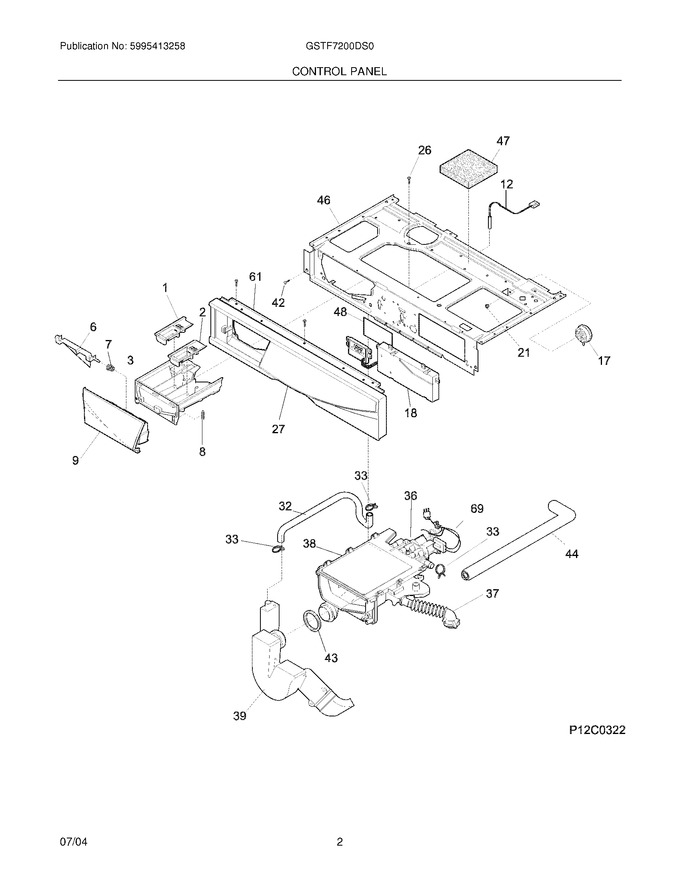

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271910		Drawer,dispenser				$ 52.03
6	134202900		Latch,disp Drawer		Appelez-nous	-
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	134224500		Handle,disp Drawer ,front/rear Assy				$ 65.82
19	134205400		Screw,pan Head ,6-19 X 0.500 ,type P		Appelez-nous	-
21	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
26	131823400		Screw,8-18 X 2.00				$ 1.42
27	134208250		Frame,control Console ,with Membrane				$ 459.32
32	131786100		Hose-dispenser				$ 66.62
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
37	131271600		Hose-tub				$ 90.01
38	131803710		Dispenser Assy,detergent				$ 339.83
39	131863300		Siphon				$ 30.96
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
46	134191413		Panel,control Mtg. ,wing Bend		Appelez-nous	-
47	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
48	134205500		Shield,control ,plastic		Appelez-nous	-
61	134167200		Drip Rail,console		Appelez-nous	-
F12	134204300		Switch,reed		Appelez-nous	-
F17	134381100		Switch,pressure		Appelez-nous	-
F18	134207750		Control Board,printed Circuit ,120 V ,with Display		Appelez-nous	-
F36	131974700		Valve,dispenser ,w/seal			Immediately	$ 104.10
F44	131899800		Thermistor,w/hose & Clamp		Appelez-nous	-
F69	131908000		Wiring Harness,dispenser Valve				$ 98.49
NI	134201700		Wiring Harness,control Panel		Appelez-nous	-
NI	131307900		Clamp,siphon/bellows				$ 11.34

    View Diagram in Separate Window       Print Part List
