01 - Cover
03 - Control Panel
05 - Cabinet/top

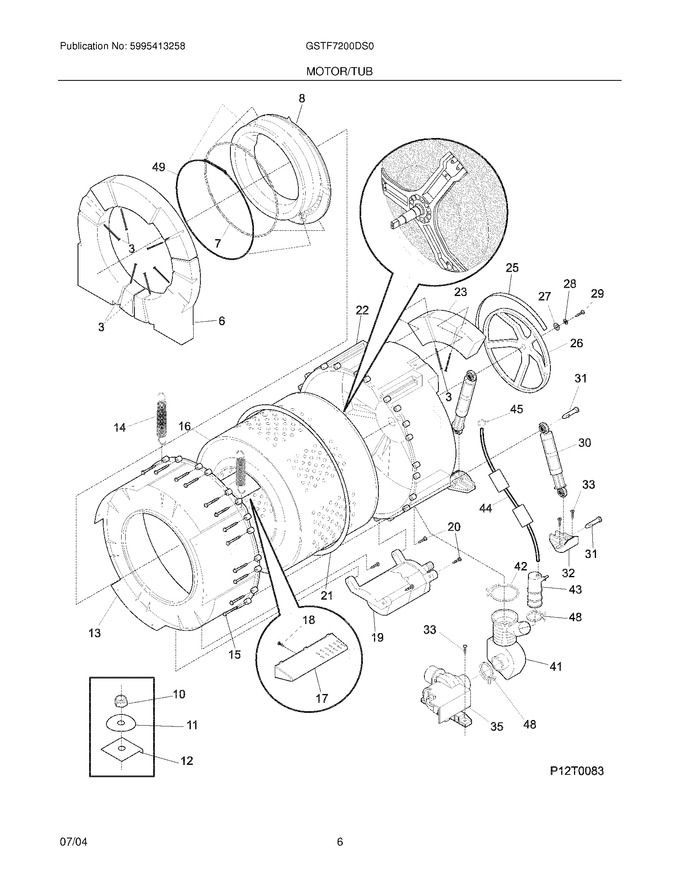

07 - Motor/tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 131793302 | Bolt,carriage ,1/4-20 X 4.00 |
|
$ 28.97 | |||||
| 6 | 131975300 | Counterweight,one Piece |
|
$ 200.39 | |||||
| 7 | 131277300 | Spring,boot Retainer |
|
$ 48.39 | |||||
| 8 | 5303937187 | Bellows,door Boot (Replaces: 134177600) |
|
Immediately | $ 134.13 | ||||
| 10 | 131304700 | Nut,hex ,1/4-20 Unc-2b |
|
$ 8.14 | |||||
| 11 | 131276900 | Washer,bellville ,spring Steel |
|
$ 21.69 | |||||
| 12 | 131793500 | Plate,counterweight |
|
$ 11.76 | |||||
| 13 | 131618600 | Shell,outer Tub ,front |
|
$ 434.48 | |||||
| 14 | 134144700 | Spring Assy,suspension ,w/sleeves |
|
Immediately | $ 60.25 | ||||
| 15 | 131303900 | Screw,hex Washer Head ,1/4-10a X 2.165 |
|
$ 15.60 | |||||
| 16 | 131618500 | Drum Assy,spin Basket |
|
$ 787.77 | |||||
| 17 | 131274600 | Vane |
|
Immediately | $ 67.96 | ||||
| 18 | 131302800 | Screw,vane Mtg. ,10-16ab X 0.375 |
|
Immediately | $ 26.58 | ||||
| 20 | 131303500 | Screw,hex Washer Head ,12-14ab X 1.50 ,motor Mtg. |
|
$ 12.05 | |||||
| 21 | 134146100 | O-ring-tub |
|
Immediately | $ 71.58 | ||||
| 22 | 131525500 | Shell,outer Tub ,rear ,with Bearing (Replaces: 131462800) |
|
Immediately | $ 634.00 | ||||
| 23 | 134125900 | Counterweight,drum Rear |
|
$ 78.12 | |||||
| 25 | 134051000 | Belt,drive-v ,6-rib |
|
Immediately | $ 38.98 | ||||
| 26 | 131883400 | Pulley,drive ,large ,drum Rear ,reinforced |
|
$ 205.54 | |||||
| 27 | 131304400 | Washer,0.41 X 1.50 ,0.12 Thick |
|
$ 32.52 | |||||
| 28 | 131304500 | Washer-lock,3/8 |
|
$ 12.53 | |||||
| 29 | 131303700 | Screw,pulley Mtg. ,m10 X 0.92 ,metric |
|
$ 15.90 | |||||
| 30 | 5304485917 | Shock Absorber,air ,stabilizer (Replaces: 131268200) |
|
Immediately | $ 45.44 | ||||
| 31 | 131268300 | Pin,shock Mtg. |
|
Immediately | $ 12.76 | ||||
| 32 | 131268100 | Bracket,shock Mtg. |
|
$ 59.90 | |||||
| 33 | 134160900 | Screw,quadrex ,10-16ab X 0.750 |
|
$ 12.05 | |||||
| 35 | 137108000 | Pump,drain (Replaces: 134051100) |
|
Immediately | $ 214.71 | ||||
| 41 | 131784700 | Coin Trap (Replaces: 134044200) |
|
Immediately | $ 116.37 | ||||
| 42 | 134737300 | Clamp (Replaces: 131333101) |
|
$ 20.13 | |||||
| 43 | 131277500 | Chamber-air |
|
$ 51.41 | |||||
| 44 | 131277600 | Hose,air Pressure |
|
- | |||||
| 45 | 131306202 | Clamp,pressure Hose |
|
$ 11.63 | |||||
| 48 | 5304536802 | Clamp,pump To Trap (Replaces: 131306234) |
|
Immediately | $ 4.01 | ||||
| 49 | 134266500 | Clamp,bellows/boot ,0.059 Od Wire ,spring Held |
|
$ 54.41 | |||||
| F19 | 131770600 | Motor |
|
- | |||||
| NI | 131560000 | Sleeve,protector ,lwr Spring Hook |
|
$ 13.40 | |||||
| NI | 131592200 | Sleeve,protector ,upr Spring Hook |
|
$ 36.01 | |||||
| NI | 134399400 | Energy Guide |
|
- |
