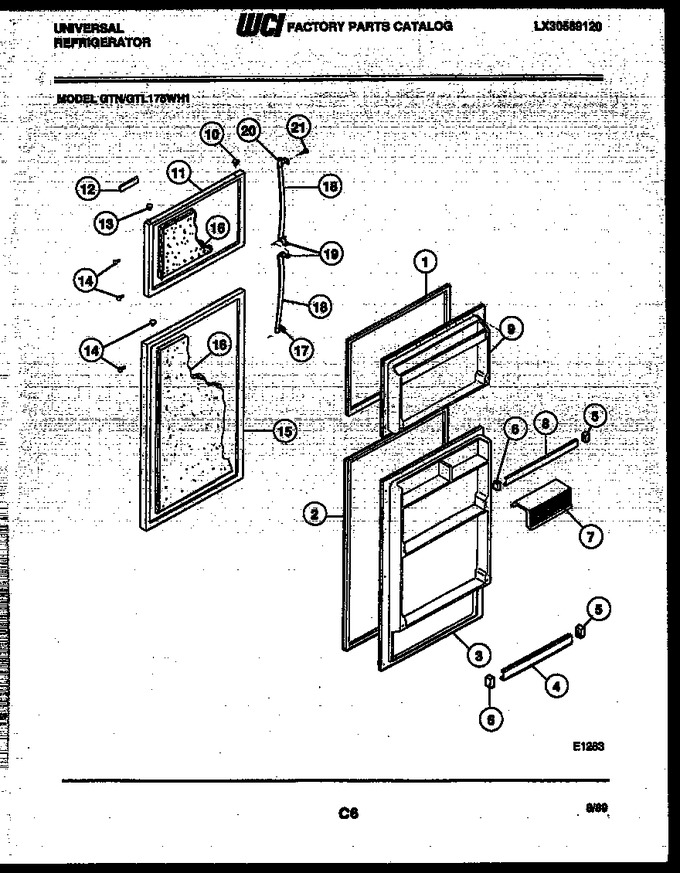

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3001399		Gasket-freezer		Appelez-nous	-
2	3001517		Gasket-refrigerator		Appelez-nous	-
3	3001516		Inner Panel Refrigerator		Appelez-nous	-
4	3001515		Rack-refrigerator Door (2)		Appelez-nous	-
5	3001410		Support Rs (3)		Appelez-nous	-
6	3001411		Support Ls (3)		Appelez-nous	-
7	3001314		Dairy Door		Appelez-nous	-
8	3001511		Rack-freezer Door		Appelez-nous	-
9	3001512		Inner Panel-freezer		Appelez-nous	-
10	G169332-09		Button Plug, Wheat		Appelez-nous	-
11	G185599-09		Freezer Door-wheat		Appelez-nous	-
12	G171161-01		Frame-nameplate		Appelez-nous	-
13	G183138		Bearing Hinge (8)		Appelez-nous	-
14	G162977-09		Button Plug-wheat		Appelez-nous	-
15	G185600-09		Refrigerator Door-wheat		Appelez-nous	-
16	G89643		Insulation (bulk)		Appelez-nous	-
17	G179801		Handle End-bottom		Appelez-nous	-
18	3001531		Grip-handle (2)		Appelez-nous	-
19	G187329-01		Handle End (2)		Appelez-nous	-
20	G179800		Handle End-top		Appelez-nous	-
21	G185566		Screw		Appelez-nous	-
15A	08000255		Stop-door (2) (non-illustrated)		Appelez-nous	-
15B	G185566		Screw		Appelez-nous	-
3A	3001001		Screw-panel Mounting (34) (non-illustrated)		Appelez-nous	-
9A	3001001		Screw-panel Mtg (22) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
