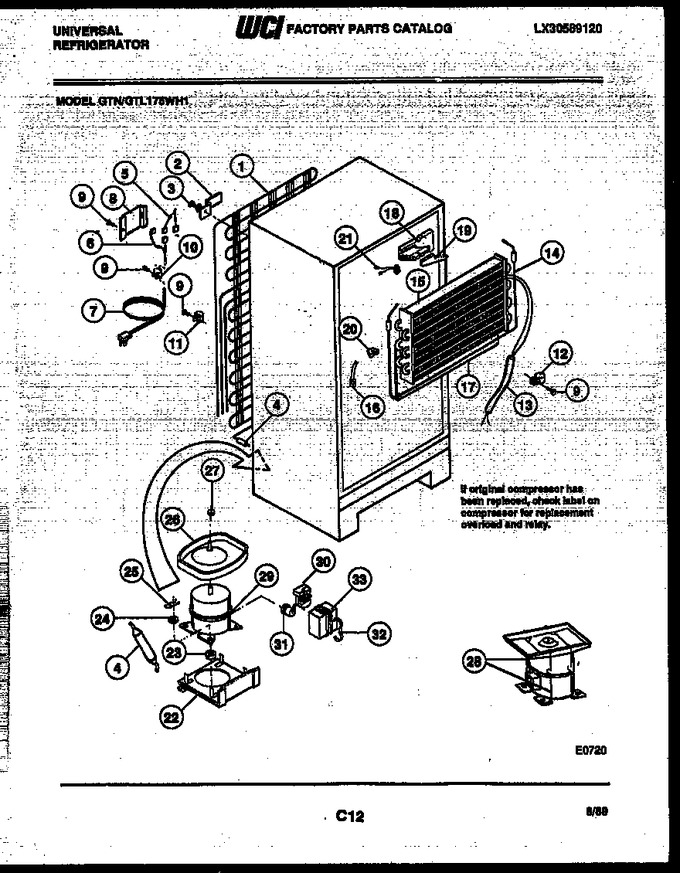

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G178225 | Condenser |
|
- | |||||
| 2 | G164637 | Bracket-condenser Mounting (4) |
|
- | |||||
| 3 | G160578 | Screw |
|
- | |||||
| 4 | 3007351 | Drier-filter |
|
- | |||||
| 5 | G174818 | Wiring Harness-control |
|
- | |||||
| 6 | G166062-01 | Wiring Harness-compr |
|
- | |||||
| 7 | G162549-01 | Service Cord |
|
- | |||||
| 8 | G183584 | Cover, Wiring |
|
- | |||||
| 9 | G187009 | Screw-8-15 X 1/2 |
|
- | |||||
| 10 | 3001199 | Clamp-cable (3) |
|
- | |||||
| 11 | G168978 | Clamp-harness (2) |
|
- | |||||
| 12 | 08000133 | Clamp |
|
- | |||||
| 13 | 08000728 | Heat Exchanger |
|
- | |||||
| 14 | 08009754 | Heater-defrost |
|
- | |||||
| 15 | G176909 | Evaporator Coil |
|
- | |||||
| 16 | 08000110 | Strap-evap/heater (2) |
|
- | |||||
| 17 | G166511-02 | Insulator-evaporator |
|
- | |||||
| 18 | 3001360 | Insulation Block Rs |
|
- | |||||
| 19 | G185276 | Insulation Plug Rs |
|
- | |||||
| 20 | G188375 | Insulation Block Ls |
|
- | |||||
| 21 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 22 | G184599 | Plate-compr Mtg |
|
- | |||||
| 23 | 08008778 | Grommet (4) |
|
- | |||||
| 24 | G164634 | Washer (4) |
|
- | |||||
| 25 | G163204 | Clip (4) |
|
- | |||||
| 26 | G184715 | Drain Pan-svce Compr |
|
- | |||||
| 27 | G164958 | Lock Nut-pan Mtg |
|
- | |||||
| 28 | 3916001 | Pan Retainer Kit-svce |
|
- | |||||
| 29 | G175410 | Compr W/ Electricals-service |
|
- | |||||
| 30 | G182225-12 | Relay |
|
- | |||||
| 31 | G185797 | Overload |
|
- | |||||
| 32 | 08016584 | Cover Strap |
|
- | |||||
| 33 | 08016583 | Terminal Cover |
|
- | |||||
| *48149 | G189383 | Hot Tube Repair Kit |
|
- | |||||
| *48149 | G189437 | Spacer-tube (3) |
|
- | |||||
| 26A | G171129 | Drain Pan-orig Compr (non-illustrated) |
|
- | |||||
| 26B | G169873 | Sound Tape-pan (non-illustrated) |
|
- | |||||
| 3A | G164820 | Washer-no. 10 Ext Tooth Lock (non-illustrated) |
|
- |
