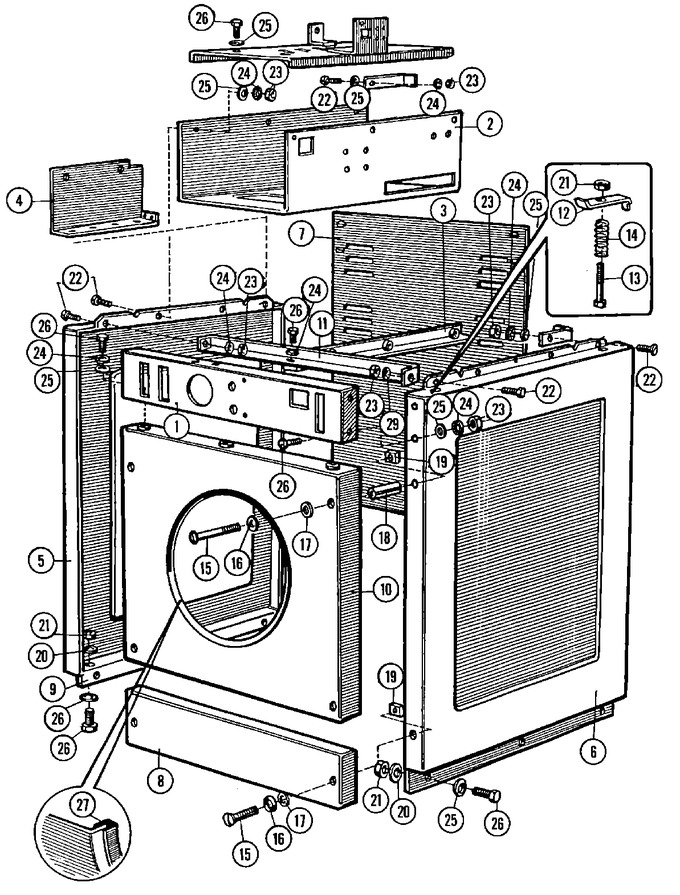

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Plate, Back-up (coin Meter)	10	Appelez-nous	-
002	23001314		Tray, Elec. Components	10	Appelez-nous	-
003	NLA		Holder Box, Electrical Compone	10	Appelez-nous	-
004	23001548		Condensators, Box	10	Appelez-nous	-
005	23001431		Panel, Side (lt)	10	Appelez-nous	-
006	NLA		Panel, Side (rt)	10	Appelez-nous	-
007	NLA		Panel, Rear	10	Appelez-nous	-
008	23001436		Panel, Access (lwr)	10	Appelez-nous	-
009	23001438		Support, Side Panel	10	Appelez-nous	-
010	23001347		Panel, Front	10	Appelez-nous	-
011	NLA		Beam, Cross	10	Appelez-nous	-
012	23001442		Cover, Hook	10	Appelez-nous	-
013	23001444		Bolt (m6x30)	10	Appelez-nous	-
014	23001445		Cover, Spring	10	Appelez-nous	-
015	23001446		Screw (m5 X 50 Stnls Steel)	10	Appelez-nous	-
016	23001204		Washer, Finishing (dia. 5)	10			$ 278.89
017	23001447		Washer, Fiber (12 X 6 X 2)	10	Appelez-nous	-
018	23001331		Spacer, Panel	10	Appelez-nous	-
019	23001448		Nut, Rapid (m5)	10	Appelez-nous	-
020	23001309		Washer (6.4) Lu	10	Appelez-nous	-
021	23001310		Nut, Self Locking (m6)	10	Appelez-nous	-
022	23001449		Locking Nut, Self (m6)	10	Appelez-nous	-
023	23001034		Nut (m6)	10	Appelez-nous	-
024	23001028		Lockwasher (external Teeth M6)	10	Appelez-nous	-
025	23001027		Washer (dia. 12x6.5x1.6)	10	Appelez-nous	-
026	23001026		Bolt (m6 X 16)	10	Appelez-nous	-
027	23001088		Trim, Rubber	10	Appelez-nous	-
