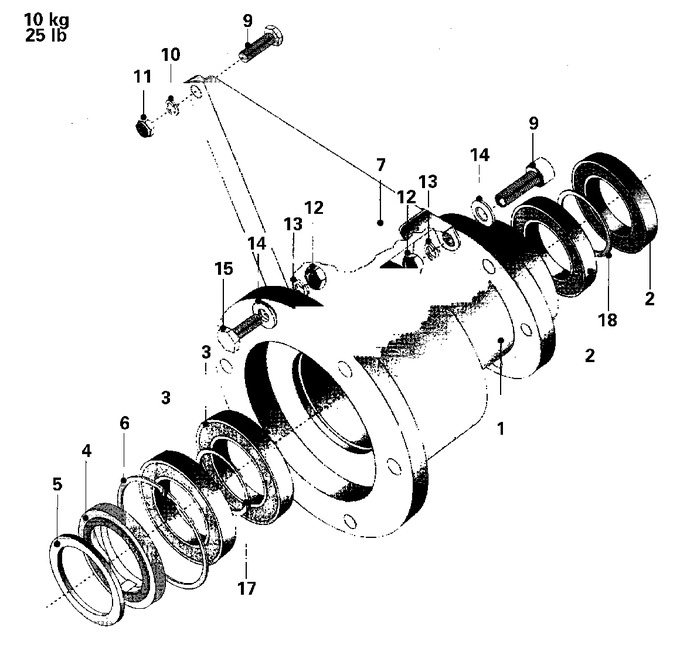

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001230		Trunnion (casting Only)	11	Appelez-nous	-
002	23001232		Bearing (rear)	11	Appelez-nous	-
003	23001231		Bearing (6209 2rs C3)	11	Appelez-nous	-
004	23001234		Seal, Water	11	Appelez-nous	-
005	23001233		Ring, Seal	11	Appelez-nous	-
006	23001235		Ring, Internal Snap	11			$ 2,741.81
007	23003369		Spoke	11	Appelez-nous	-
008	DC60-50145A		Nut M10   (Replaces: 23001661)	11			$ 2.39
009	23003808		Bolt (m10 X 40)   (Replaces: 23001239)	11	Appelez-nous	-
010	23002358		Washer M8	11	Appelez-nous	-
011	23001607		Nut (m8)	11	Appelez-nous	-
012	DC60-50145A		Nut M10   (Replaces: 23001661)	11			$ 2.39
013	23001400		Lock Washer, Spring	11	Appelez-nous	-
014	23001201		Washer (dia. 22x11x1 Brass)	11			$ 303.26
015	23001374		Bolt (m6 X 20)	11	Appelez-nous	-
016	23003355		Nut (m8)	11	Appelez-nous	-
017	23001236		Spacer Ring (front Bearing)	11	Appelez-nous	-
018	23001237		Spacer Ring (rear Bearing)	11	Appelez-nous	-
019	23002938		Trunnion (35lbs) Items 1,2,3,&6	11	Appelez-nous	-
