SELECT A DIAGRAM

01 - Cover Sheet


02 - Base Frame Parts


03 - Cabinet Parts


04 - Top Cover Assembly Parts


05 - Door Lock Assembly Parts


06 - Door Parts-prior To Series 16


07 - Door Parts-starting With Series 16


08 - Soap Box, Drain And Hose Assembly Parts


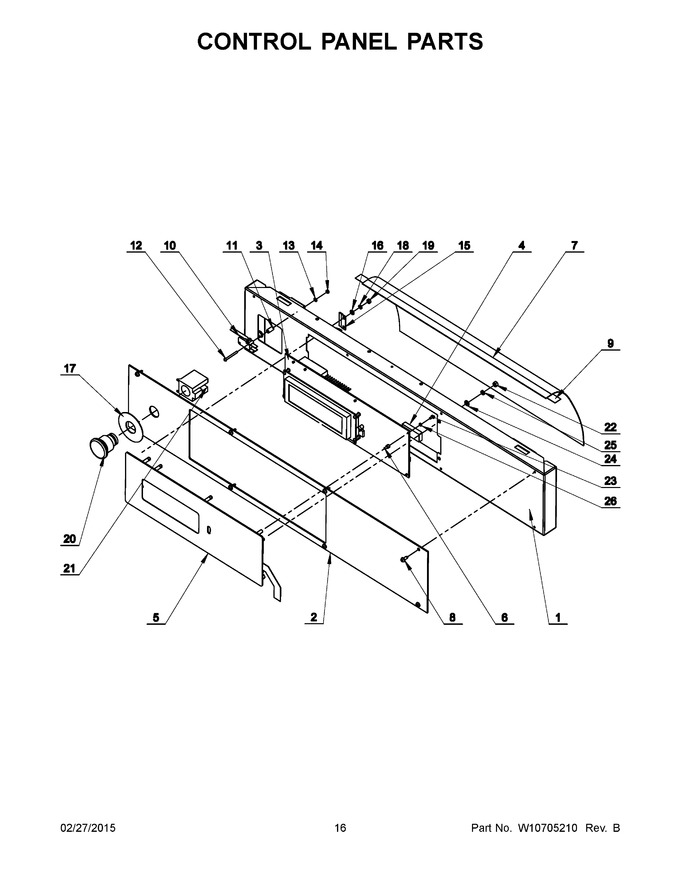

09 - Control Panel Parts


10 - Tub And Drum Parts


11 - Drive Parts


12 - Water Valve And Rear Panel Parts


13 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004278		Panel, Control		Appelez-nous	-
2	23004279		Panel, Facia		Appelez-nous	-
3	23003991		Mc4 Opl Ccu		Appelez-nous	-
4	W10165009		Mc4 Opl Program Chip				$ 57.52
5	23004133		Membrane Switch		Appelez-nous	-
6	23004134		Spacer M3x5x3		Appelez-nous	-
7	23002877		Shield, Rain		Appelez-nous	-
8	WPW10131119		Screw M4x13   (Replaces: 23003810)				$ 6.26
9	23004126		Double-sided Tape		Appelez-nous	-
10	23001145		Switch, Door Closed		Appelez-nous	-
11	23003653		Spacer		Appelez-nous	-
12	23003652		Bolt M3x30		Appelez-nous	-
13	23003654		Washer M3.2		Appelez-nous	-
14	23002958		Nut M3		Appelez-nous	-
15	23003871		Mounting Bracket		Appelez-nous	-
16	23002438		Washer M4.3		Appelez-nous	-
17	23002330		Stop Switch Button		Appelez-nous	-
18	23002426		Washer, Lock M4		Appelez-nous	-
19	23003666		Nut M4		Appelez-nous	-
20	23004136		Stop Switch Button		Appelez-nous	-
21	23004137		Stop Switch		Appelez-nous	-
22	W10244602		Nut M5   (Replaces: 23001334)				$ 11.90
23	23002869		Bolt M3x6		Appelez-nous	-
24	23002862		Washer M5.3		Appelez-nous	-
25	23002836		Washer M5		Appelez-nous	-
26	23002870		Washer, Lock M3		Appelez-nous	-
3A	W10286300		Mc5 Opl Ccu		Appelez-nous	-
4A	W10304859		Mc5 Opl Program Chip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
