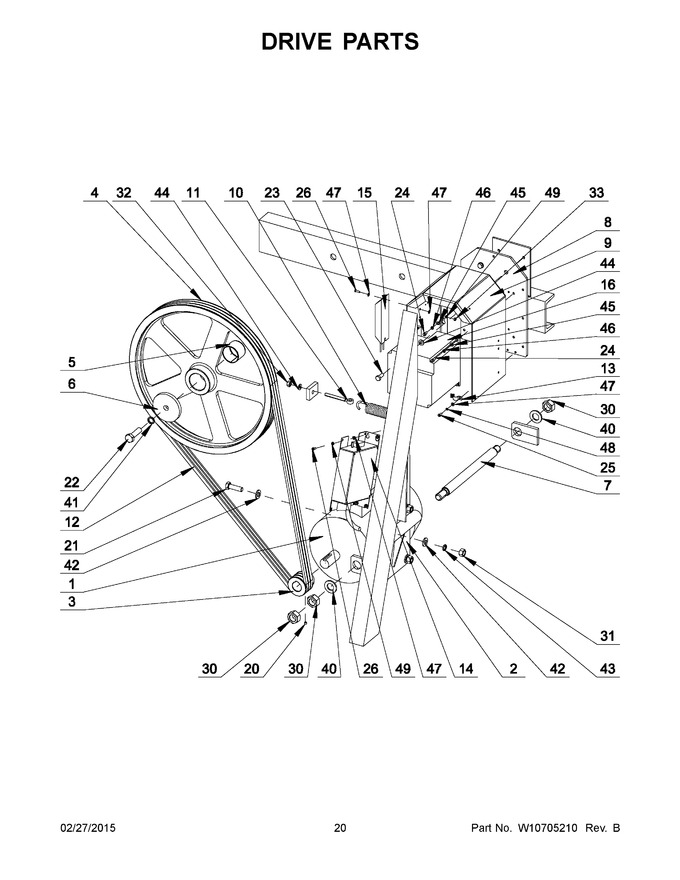

11 - Drive Parts


12 - Water Valve And Rear Panel Parts


13 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004083		Motor 240v		Appelez-nous	-
2	23004283		Plate, Motor		Appelez-nous	-
3	23004284		V-pulley, Motor		Appelez-nous	-
4	23001285		V-pulley, Drum (dia. 450)		Appelez-nous	-
5	23001274		Ring, Tolerance		Appelez-nous	-
6	W10684094		Washer M90x10		Appelez-nous	-
7	23004286		Shaft, Motor Plate		Appelez-nous	-
8	W10684095		Bracket, Frequency Inverter		Appelez-nous	-
9	23004017		Shield, Frequency Inverter		Appelez-nous	-
10	23004256		Spring		Appelez-nous	-
11	23004255		Bolt M8x80		Appelez-nous	-
12	23003854		V-belt (60hz) Lu				$ 61.36
13	23004021		Clamp, Cable		Appelez-nous	-
14	W10684099		Filter, Frequency 3phase 400v		Appelez-nous	-
15	23004024		Brake Resistor 1phase 240v		Appelez-nous	-
16	23003986		Frequency Inverter 1x230v		Appelez-nous	-
20	23002930		Bolt M6x6		Appelez-nous	-
21	23003079		Bolt M12x40		Appelez-nous	-
22	23002931		Bolt M14x50		Appelez-nous	-
23	23002475		Bolt M8x20				$ 13.66
24	23001704		Bolt M5x10		Appelez-nous	-
25	23001361		Bolt M4x10		Appelez-nous	-
26	23001609		Bolt M4x12		Appelez-nous	-
30	23003935		Nut M20		Appelez-nous	-
31	23003676		Nut M12		Appelez-nous	-
32	23001266		Nut M8		Appelez-nous	-
33	23003666		Nut M4		Appelez-nous	-
40	23004285		Washer M20		Appelez-nous	-
41	23001226		Lock Washer, Spring M14		Appelez-nous	-
42	23001292		Washer M13		Appelez-nous	-
43	23002658		Washer M12		Appelez-nous	-
44	23001203		Washer M8.4x24x2		Appelez-nous	-
45	23001708		Washer M5.3		Appelez-nous	-
46	23002836		Washer M5		Appelez-nous	-
47	23002438		Washer M4.3		Appelez-nous	-
48	23002400		Washer M4		Appelez-nous	-
49	23002950		Washer, Lock M4		Appelez-nous	-
15A	W10667487		Brake Resistor 3phase 400v		Appelez-nous	-
16A	W10684101		Frequency Inverter 3x400v		Appelez-nous	-
16B	23004220		Fan, Frequency Inverter		Appelez-nous	-
16C	23004210		Communication Cable		Appelez-nous	-
1A	W10684402		Cable, Motor		Appelez-nous	-
