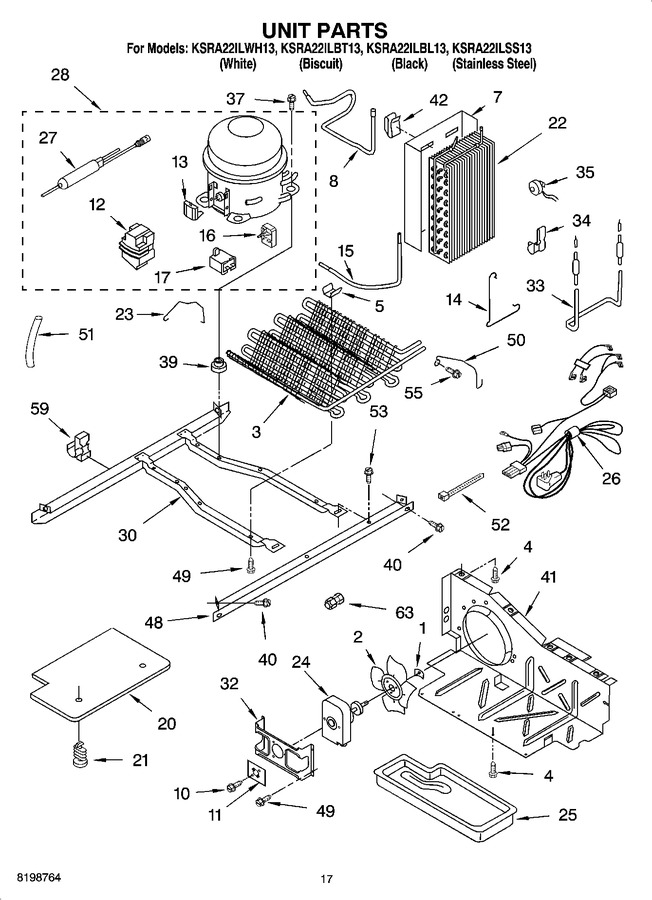

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.04 | |||||
| 2 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 3 | 2204484 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 16.61 | |||||
| 7 | 2256149 | Heat Shield And Drain Pan |
|
- | |||||
| 8 | 2205764 | Tube Suction |
|
$ 76.44 | |||||
| 10 | 8281160 | Screw |
|
- | |||||
| 11 | 2216997 | Insert, Bracket |
|
- | |||||
| 12 | WP2162358 | Cover (service Compressor Only) (Replaces: 4387731) |
|
$ 81.68 | |||||
| 13 | 4387535 | Overload (service Compressor Only- Includes Relay) (Replaces: 4387767) |
|
$ 163.76 | |||||
| 14 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 15 | 2255798 | Tube, Condenser To Heat Loop |
|
- | |||||
| 16 | WPW10189190 | Start-device, Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2255554) |
|
Immediately | $ 118.16 | ||||
| 17 | WPW10662129 | Capacitor ((production) (Replaces: 999532) |
|
Immediately | $ 52.97 | ||||
| 17 | WP4387764 | Capacitor (service) (Replaces: 4387764) |
|
$ 159.34 | |||||
| 20 | 2182057 | Unit Cover, Bottom |
|
$ 72.28 | |||||
| 21 | 489396 | Clip |
|
$ 9.65 | |||||
| 22 | WP2188822 | Evaporator (Replaces: 2164518) |
|
Immediately | $ 305.87 | ||||
| 23 | 2255199 | Clip, Retaining |
|
- | |||||
| 24 | W10124096 | Motor, Fan (Replaces: 2206005) |
|
Immediately | $ 100.98 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 101.86 | ||||
| 26 | WPW10309395 | Harness, Wire (Replaces: 2187783) |
|
$ 264.30 | |||||
| 27 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 47.31 | ||||
| 27 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 47.31 | ||||
| 28 | W10309990 | Compressor (includes Items 12, 13, 17 & 27) (Replaces: 2255455) |
|
Immediately | $ 569.53 | ||||
| 30 | 2304903 | Frame, Unit Mounting (Replaces: 2160501) |
|
$ 209.73 | |||||
| 32 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 11.08 | |||||
| 33 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 105.64 | ||||
| 34 | 2161330 | Clip |
|
- | |||||
| 35 | WPW10225581 | Bi-metal, Defrost (Replaces: 2196155) |
|
Immediately | $ 45.69 | ||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 6.68 | |||||
| 39 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 6.68 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.26 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 86.74 | |||||
| 42 | 2155547 | Clip, Heat |
|
- | |||||
| 48 | 2149718 | Unit Mounting Rail |
|
- | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 50 | 2186496 | Guard, Fan |
|
- | |||||
| 51 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 18.27 | ||||
| 52 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.11 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 55 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 59 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 63 | N/A | Refrigerant Charge 5.0 Oz. (r-134) |
|
- | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| 63 | WP4373559 | Connector, Water Tube (Replaces: 2209709) |
|
$ 69.62 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 |
