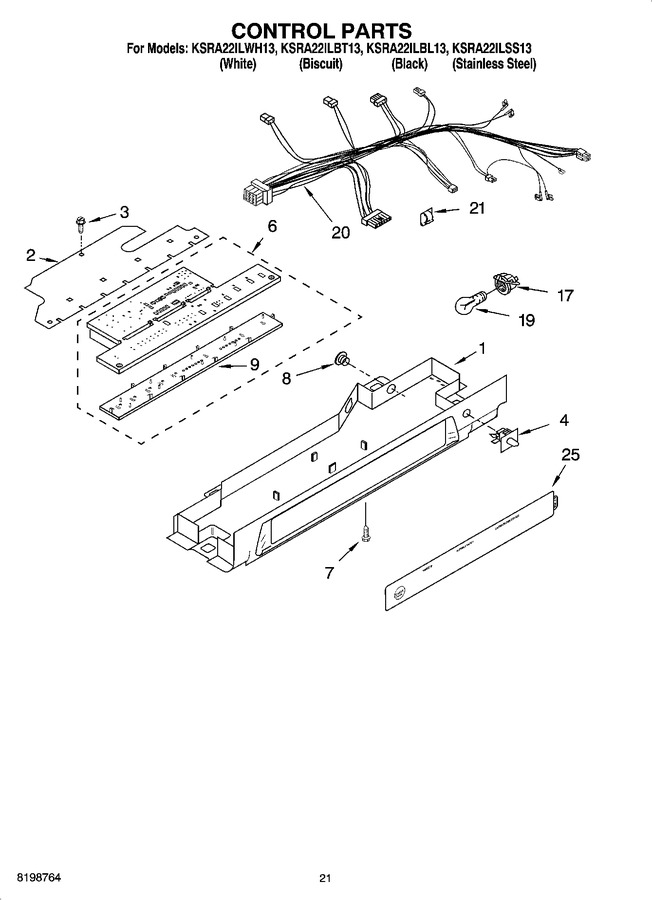

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2212005 | Control Box |
|
- | |||||
| 2 | 2216879 | Cover |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | WP2149705 | Light Switch (Replaces: 2219875) |
|
Immediately | $ 36.36 | ||||
| 6 | 2252140 | Control Board |
|
- | |||||
| 7 | WP488488 | Screw (Replaces: 489290) |
|
$ 6.91 | |||||
| 8 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 9 | 2212011 | Insert, Control Board |
|
- | |||||
| 17 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 19 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 20 | 2216115 | Control Box Harness |
|
- | |||||
| 21 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 6.98 | |||||
| 25 | 2220255 | Overlay, Control Box |
|
$ 127.45 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 350956 | Enamel, Almond (12 Oz. Spray Can) |
|
$ 46.30 | ||||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 208.40 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 70.61 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.26 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 10.96 | |||||
| 2212303 | Ice Container Assembly |
|
- | ||||||
| 2006783 | Cleaner, Stainless Steel |
|
- | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 80.69 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
Immediately | $ 51.34 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 23.81 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 156.56 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | ||||||
| 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 208.40 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 |
