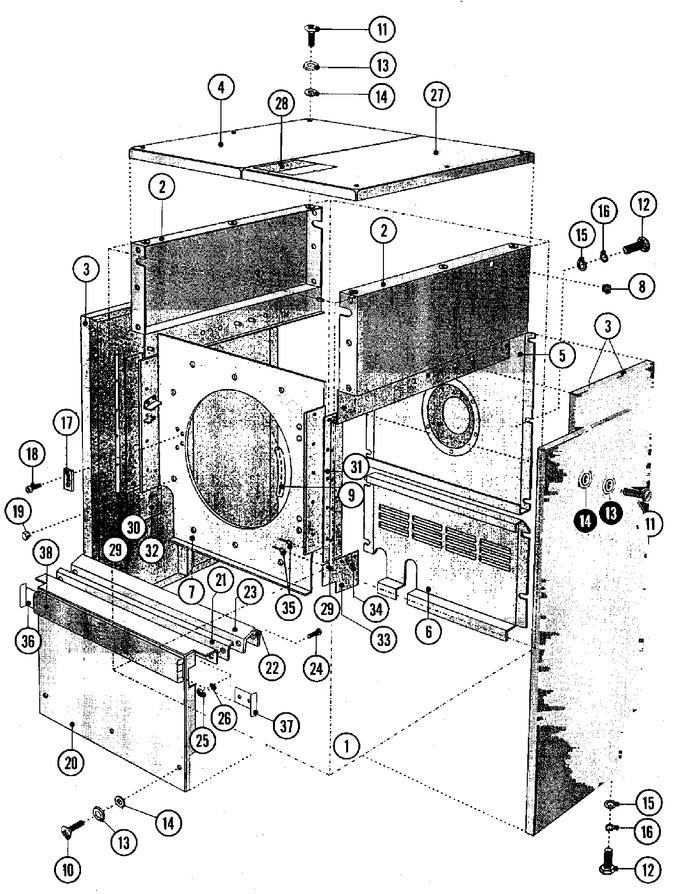

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002380		Cover, Front	10	Appelez-nous	-
002	23003181		Side, Cover (upper-complete)	10	Appelez-nous	-
003	23003182		Cover, Side (complete)	10	Appelez-nous	-
004	23003183		Cover (upper-complete)	10	Appelez-nous	-
005	23003184		Cover, Rear (upper)	10	Appelez-nous	-
006	23003185		Cover (lower-rear)	10	Appelez-nous	-
007	23003186		Foil	10	Appelez-nous	-
008	23001476		Plug, Water Inlet	10			$ 705.49
009	23001088		Rubber Trim	10	Appelez-nous	-
010	23002374		Screw (m6x20)	10	Appelez-nous	-
011	23002375		Screw (m6x40)	10	Appelez-nous	-
012	23004114		Screw (m6x18)   (Replaces: 23001618)	10	Appelez-nous	-
013	23001337		Washer, Finishing	10	Appelez-nous	-
014	23001338		Washer, Fiber (dia. 15x7x3)	10	Appelez-nous	-
015	23002129		Washer (m4)	10	Appelez-nous	-
016	23002130		Washer (6)	10	Appelez-nous	-
017	23002390		Block	10	Appelez-nous	-
018	NLA		Screw (m8x15)	10	Appelez-nous	-
019	NLA		Nut (m6)	10	Appelez-nous	-
020	23002393		Cover, Front-lower	10	Appelez-nous	-
021	23002394		Support, Side Panel	10	Appelez-nous	-
022	23002395		Ribbon	10	Appelez-nous	-
023	23002396		Strip	10	Appelez-nous	-
024	23002398		Screw (m4x16)	10	Appelez-nous	-
025	23002399		Nut(m4)	10	Appelez-nous	-
026	23002400		Washer	10	Appelez-nous	-
027	23003187		Cover (upper)	10	Appelez-nous	-
028	23002362		Rivet W/crank	10	Appelez-nous	-
029	NLA		Bar	10	Appelez-nous	-
030	NLA		Cuff (lt)	10	Appelez-nous	-
031	NLA		Cuff (rt)	10	Appelez-nous	-
032	NLA		Corner Cuff (lt)	10	Appelez-nous	-
033	NLA		Corner Cuff (rt)	10	Appelez-nous	-
034	NLA		Washer	10	Appelez-nous	-
035	23002408		Rivet W/crank	10	Appelez-nous	-
036	23002409		Bar, Inside	10	Appelez-nous	-
037	23002410		Bar, Side	10	Appelez-nous	-
038	23002411		Profile	10	Appelez-nous	-
