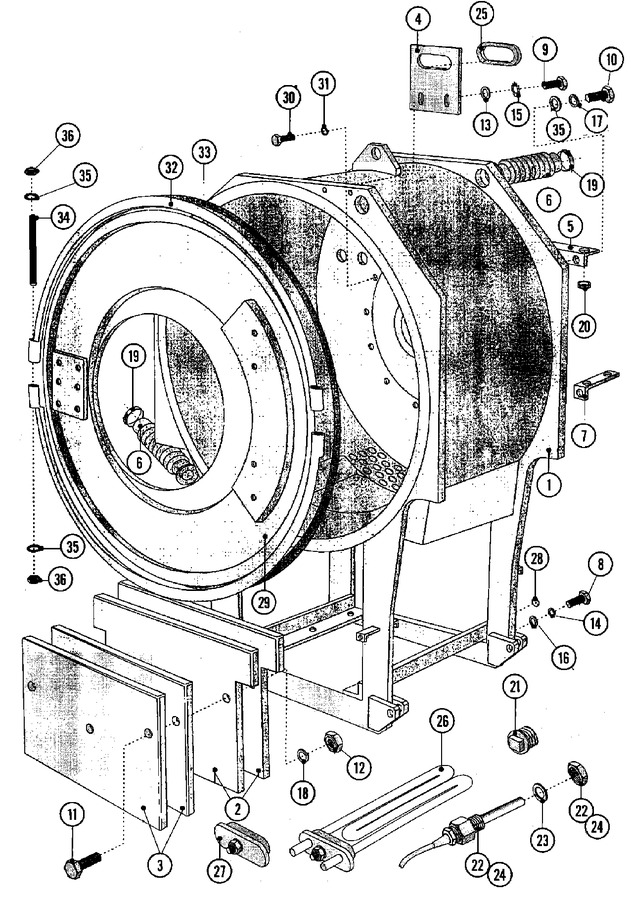

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003188 | Tub 80lb | 10 |
|
- | ||||
| 002 | 23002414 | Weight (large) | 10 |
|
$ 231.19 | ||||
| 003 | 23002415 | Weight (small) | 10 |
|
$ 337.48 | ||||
| 004 | 23002416 | Limiter | 10 |
|
- | ||||
| 005 | 23002417 | Holder | 10 |
|
- | ||||
| 006 | 23003934 | Hose, Rubber (Replaces: 23002474) | 10 |
|
- | ||||
| 007 | 23002418 | Holder, Wire | 10 |
|
- | ||||
| 008 | 23002353 | Screw (m6x12) | 10 |
|
- | ||||
| 009 | 23004114 | Screw (m6x16) (Replaces: 23002354) | 10 |
|
- | ||||
| 010 | 23002475 | Bolt (m8x20) | 10 |
|
$ 13.66 | ||||
| 011 | 23002476 | Screw (m20x150) | 10 |
|
- | ||||
| 012 | 23002477 | Nut (m20) | 10 |
|
- | ||||
| 013 | 23002282 | Washer (6) | 10 |
|
- | ||||
| 014 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 015 | 20007283 | Washer (Replaces: 23002357) | 10 |
|
$ 504.91 | ||||
| 016 | 23002130 | Washer (6) | 10 |
|
- | ||||
| 017 | 23002358 | Washer M8 | 10 |
|
- | ||||
| 018 | 23002478 | Washer | 10 |
|
- | ||||
| 019 | 23001256 | Clamp, Hose (60-80) | 10 |
|
- | ||||
| 020 | 23002479 | Passage, Cable | 10 |
|
- | ||||
| 021 | 23002480 | Plug (3/4) | 10 |
|
- | ||||
| 022 | 23002481 | Adapter | 10 |
|
- | ||||
| 023 | 23002179 | Washer | 10 |
|
- | ||||
| 024 | 23001592 | Adaptor | 10 |
|
- | ||||
| 025 | 23001088 | Rubber Trim | 10 |
|
- | ||||
| 026 | WPW10399291 | Element, Heating 80lb (Replaces: 23002191) | 10 |
|
$ 174.04 | ||||
| 027 | 23001594 | Blind, Heating Element | 10 |
|
- | ||||
| 028 | NLA | Label, Earth | 10 |
|
- | ||||
| 029 | 23002483 | Panel, Facia | 10 |
|
- | ||||
| 030 | 23002353 | Screw (m6x12) | 10 |
|
- | ||||
| 031 | 23002281 | Washer (6-copper) | 10 |
|
- | ||||
| 032 | NLA | Clip | 10 |
|
- | ||||
| 033 | 23002485 | Sealing | 10 |
|
- | ||||
| 034 | 23002486 | Bolt (m8) | 10 |
|
- | ||||
| 035 | 23002359 | Washer (m6) | 10 |
|
- | ||||
| 036 | 23002487 | Nut (m8) | 10 |
|
- |
