SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Side Panels


04 - Tub


05 - Drum


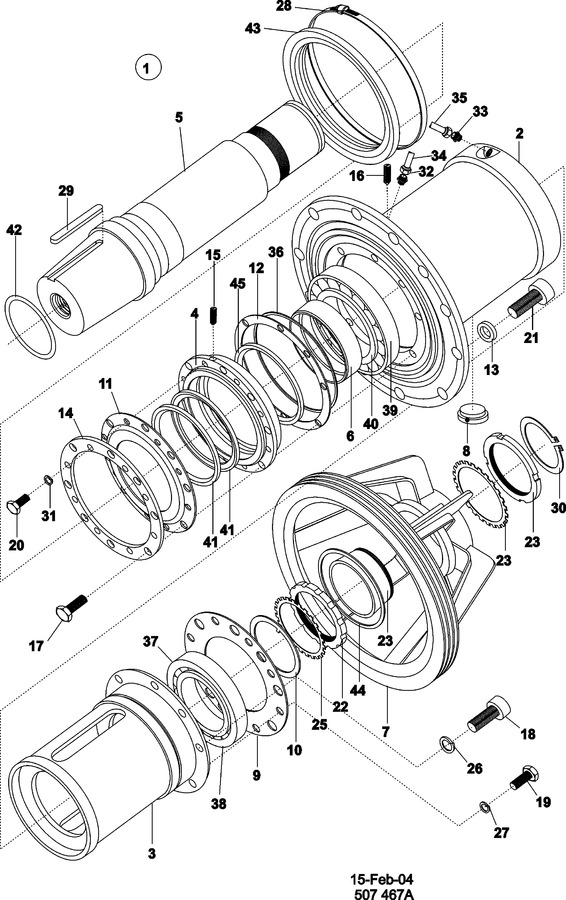

06 - Trunnion 80lb


07 - Motor


08 - Idler


09 - Door


10 - Door Lock


11 - Soap Hopper


12 - Filling System


13 - Valves


14 - Control Panel


15 - Rear Panel


16 - Electrical Components


17 - Drain System 80lb


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004420		Serv-comp Bearing Hsing	10	Appelez-nous	-
002	23003191		House, Bearing	10	Appelez-nous	-
002	23004421		Serv-tool For Replacing	10	Appelez-nous	-
003	23003192		Insert, Bearing House	10	Appelez-nous	-
004	23003193		Cover, Front	10	Appelez-nous	-
006	23003937		Ring	10			$ 35.24
007	23003196		Pulley	10	Appelez-nous	-
008	NLA		Plug	10	Appelez-nous	-
009	23003198		Cover, Small	10		Immediately	$ 783.31
010	23003938		Ring, Distance	10	Appelez-nous	-
011	23003939		Cover, Front	10	Appelez-nous	-
012	23003201		Sealing	10	Appelez-nous	-
013	23003202		Washer	10	Appelez-nous	-
014	23003203		Collar	10	Appelez-nous	-
015	NLA		Screw (m6x6)	10	Appelez-nous	-
016	23003940		Bolt M10x10	10	Appelez-nous	-
017	23001605		Screw (m8x30)	10	Appelez-nous	-
018	23003941		Bolt M10x30	10	Appelez-nous	-
019	23002422		Screw (m6 X 12)	10	Appelez-nous	-
020	23004114		Screw (m6x18)   (Replaces: 23001618)	10	Appelez-nous	-
021	23003942		Bolt M20x65	10	Appelez-nous	-
022	23001867		Ring, Fastening	10	Appelez-nous	-
023	23001653		Bushing	10	Appelez-nous	-
025	23001868		Ring, Safety	10	Appelez-nous	-
026	23002654		Washer (10)	10	Appelez-nous	-
027	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
028	23003209		Clip	10	Appelez-nous	-
029	NLA		Wedge	10	Appelez-nous	-
030	23003847		Ring, Retaining	10	Appelez-nous	-
031	23002130		Washer (6)	10	Appelez-nous	-
032	23003211		Nut, Transfering	10	Appelez-nous	-
033	23003212		Neck, Connecting	10	Appelez-nous	-
034	23003213		Hose	10	Appelez-nous	-
035	23003213		Hose	10	Appelez-nous	-
036	23003214		Ring, O	10	Appelez-nous	-
037	23001873		Ring, Pulley Side Outside Bear	10	Appelez-nous	-
038	23001874		Ring, Pulley Side Inner Bearin	10	Appelez-nous	-
039	23001875		Ring, Drum Side Outside Bearin	10	Appelez-nous	-
040	23001876		Ring, Drum Side Inner Bearing	10	Appelez-nous	-
041	23001877		Seal	10	Appelez-nous	-
042	23002485		Sealing	10	Appelez-nous	-
043	23003215		Bearing, House Sealing	10	Appelez-nous	-
044	23003069		Sealing	10	Appelez-nous	-
045	23004422		Seal	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
