SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Side Panels


04 - Tub


05 - Drum


06 - Trunnion 80lb


07 - Motor


08 - Idler


09 - Door


10 - Door Lock


11 - Soap Hopper


12 - Filling System


13 - Valves

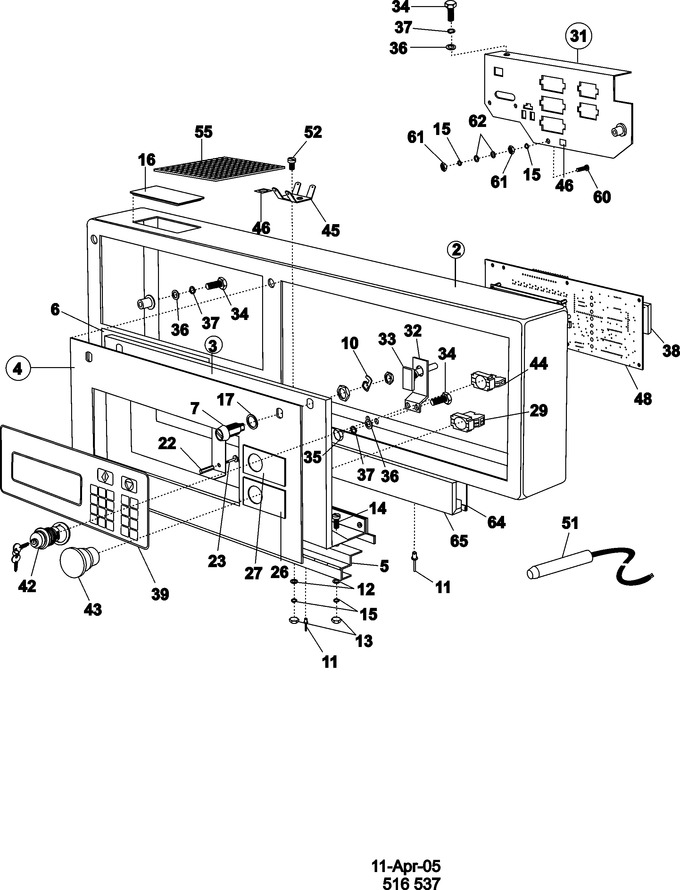

14 - Control Panel


15 - Rear Panel


16 - Electrical Components


17 - Drain System 80lb


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23002763		Panel, Front	10	Appelez-nous	-
003	23003960		Top Cover, Complete	10	Appelez-nous	-
004	23004448		Sticker-facia	10	Appelez-nous	-
005	23002766		Support, Plate	10	Appelez-nous	-
006	23004336		Logo, Label	10	Appelez-nous	-
007	23001006		Lock, Top Panel	10	Appelez-nous	-
010	23002451		Pawl	10	Appelez-nous	-
011	23002408		Rivet W/crank	10	Appelez-nous	-
012	23002438		Washer (m6)	10	Appelez-nous	-
013	23003666		Nut (m4)	10	Appelez-nous	-
014	23002423		Screw (m4 X 10)	10	Appelez-nous	-
015	23002400		Washer	10	Appelez-nous	-
016	NLA		Cover	10	Appelez-nous	-
017	23001007		Washer, Fiber	10	Appelez-nous	-
022	23003873		Sleeve	10	Appelez-nous	-
023	23003872		Screw, Thumb	10	Appelez-nous	-
026	23002330		Label, Central Stop	10	Appelez-nous	-
027	NLA		Plate (hoppers-pumps)	10	Appelez-nous	-
029	23001076		Contract Block (no)	10	Appelez-nous	-
031	23003963		Board, Complete	10	Appelez-nous	-
032	23002774		Holder, Vibration Switch	10	Appelez-nous	-
033	23002775		Switch, Vibration	10	Appelez-nous	-
034	NLA		Screw (m6x10)	10	Appelez-nous	-
035	23003773		Nut M6	10	Appelez-nous	-
036	23003778		Washer 12	10	Appelez-nous	-
037	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
038	23003992		Mcg Eeprom Chip Lu	10	Appelez-nous	-
039	23004133		Key Board, Full Control	10	Appelez-nous	-
042	23001082		Block, Programming Key	10	Appelez-nous	-
043	23004136		Stop Button Emergency	10	Appelez-nous	-
044	23004137		Contact Block	10	Appelez-nous	-
045	NLA		Contact (6.3 Type 140609-0)	10	Appelez-nous	-
046	23002505		Plate, Earth	10	Appelez-nous	-
048	23003991		Mcg Controller	10	Appelez-nous	-
051	23003964		Sensor, Temperature	10	Appelez-nous	-
052	23001609		Screw (m4x12)	10	Appelez-nous	-
055	23003874		Index Plates	10	Appelez-nous	-
060	23002778		Screw (m4 X 12)	10	Appelez-nous	-
061	23002976		Nut (m4)	10	Appelez-nous	-
062	23003955		Washer	10	Appelez-nous	-
064	NLA		Pilot Valve-l	10	Appelez-nous	-
065	23003966		Cover, Top Front	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
