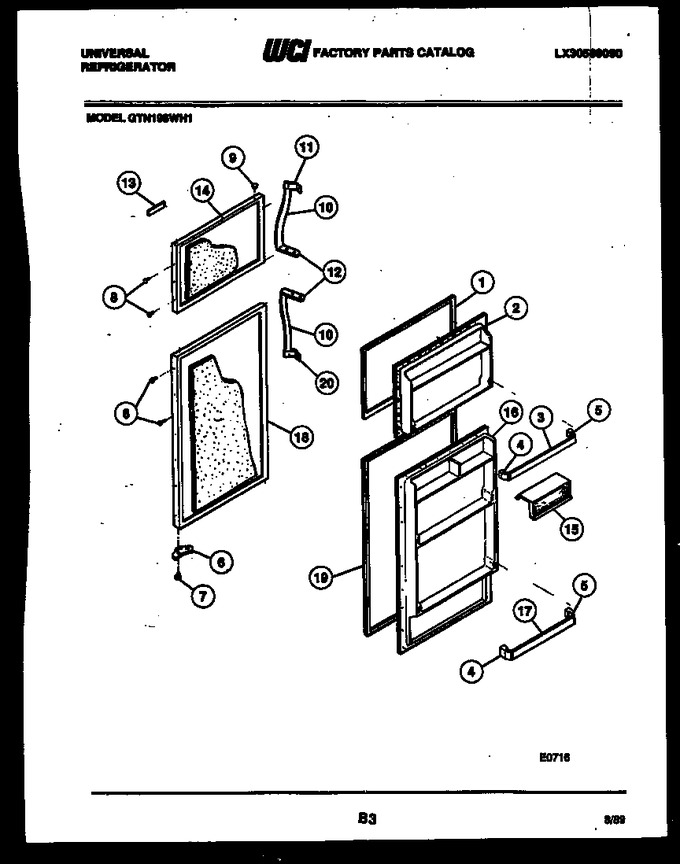

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3001486		Gasket-freezer		Appelez-nous	-
2	08002748		Screw		Appelez-nous	-
2	3001485		Panel-inner		Appelez-nous	-
3	3001484		Rack-door (2)		Appelez-nous	-
4	3001411		Support Lh (4)		Appelez-nous	-
5	3001410		Support Rh (4)		Appelez-nous	-
6	G155072		Door Stop (2)		Appelez-nous	-
7	G185566		Screw		Appelez-nous	-
8	G162977-01		Button Plug-white		Appelez-nous	-
8	G162977-10		Button Plug-coffee		Appelez-nous	-
8	G162977-09		Button Plug-wheat		Appelez-nous	-
8	G162977-11		Button Plug-almond		Appelez-nous	-
8	G162977-08		Button Plug-avocado		Appelez-nous	-
9	G169332-09		Button Plug, Wheat		Appelez-nous	-
9	G169332-01		Button Plug, White		Appelez-nous	-
9	G169332-10		Button-plug, Coffee		Appelez-nous	-
9	G169332-11		Button Plug, Almond		Appelez-nous	-
9	G169332-08		Button Plug-avocado		Appelez-nous	-
10	G170495-29		Grip-handle (2)		Appelez-nous	-
11	G179800		End Cap-top		Appelez-nous	-
12	G185566		Screw		Appelez-nous	-
12	G187329-01		Handle End (2)		Appelez-nous	-
13	G171161-01		Frame-namplate		Appelez-nous	-
14	G178690-10		Panel, Outer, Coffee		Appelez-nous	-
14	G178690-08		Panel, Outer, Avocado		Appelez-nous	-
14	G178690-09		Panel, Outer, Wheat		Appelez-nous	-
14	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
14	G178690-11		Panel, Outer, Almond		Appelez-nous	-
14	G178690		Panel, Outer, White		Appelez-nous	-
15	G178500-14		Dairy Door (2)		Appelez-nous	-
16	08002748		Screw		Appelez-nous	-
16	3001489		Panel-inner		Appelez-nous	-
17	3001418		Rack-door (2)		Appelez-nous	-
18	G178694		Panel, Outer, White		Appelez-nous	-
18	G178694-11		Panel, Outer, Almond		Appelez-nous	-
18	G178694-10		Panel, Outer, Coffee		Appelez-nous	-
18	G178694-09		Panel, Outer, Wheat		Appelez-nous	-
18	G178694-08		Panel, Outer, Avocado		Appelez-nous	-
19	08015544		Gasket-refr Door		Appelez-nous	-
20	G179801		Handle End-bottom		Appelez-nous	-
