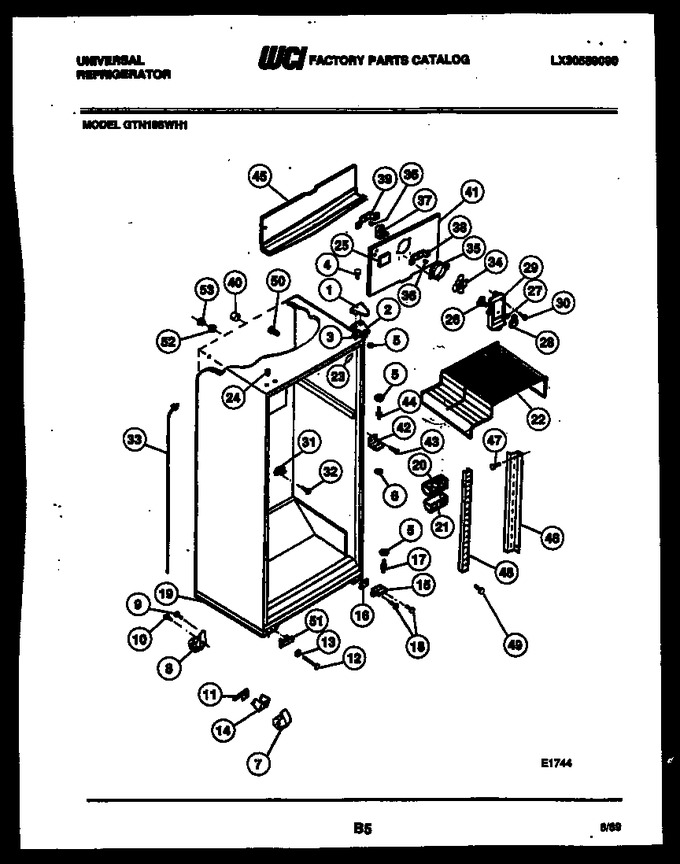

01 - Cover
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183558-08 | Cover Hinge, Avoc. |
|
- | |||||
| 1 | G183558-09 | Cover Hinge, Wheat |
|
- | |||||
| 1 | G183558-10 | Cover Hinge, Coffee |
|
- | |||||
| 1 | G183558-11 | Cover Hinge, Almond |
|
- | |||||
| 1 | G183558-01 | Cover Hinge, White |
|
- | |||||
| 2 | G157591 | Plate-tapping (2) (non-illustrated) |
|
- | |||||
| 2 | G183714 | Hinge-top |
|
- | |||||
| 3 | G183861 | Shim Top Hinge |
|
- | |||||
| 4 | G167103 | Screw (2) |
|
- | |||||
| 5 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 6 | G164355 | Washer, Hinge |
|
- | |||||
| 7 | G177021 | Roller Assembly |
|
- | |||||
| 8 | G183073 | Nut Anchor (2) (non-illustrated) |
|
- | |||||
| 8 | G185713 | Leveling Screw (2) (non-illustrated) |
|
- | |||||
| 8 | G183407 | Roller Assembly |
|
- | |||||
| 9 | G187009 | Screw-roller Mtg (2) |
|
- | |||||
| 10 | G177025 | Bolt-rear Roller (2) |
|
- | |||||
| 11 | G178494 | Spring-adj (2) |
|
- | |||||
| 12 | G177024 | Bolt-roller Adj (2) |
|
- | |||||
| 13 | G182799 | Washer (2) |
|
- | |||||
| 14 | G177302 | Support-base (2) |
|
- | |||||
| 15 | 3202834 | Hinge-bracket-bottom |
|
- | |||||
| 16 | G163203 | Shim-bottom Hinge |
|
- | |||||
| 17 | G166505 | Pin-bottom Hinge |
|
- | |||||
| 18 | G181020 | Screw (2) |
|
- | |||||
| 19 | 08010092 | Base-cabinet |
|
- | |||||
| 20 | G162675 | Deflector Air |
|
- | |||||
| 21 | G162178 | Cover, Air Deflector |
|
- | |||||
| 22 | 3001490 | Shelf-freezer |
|
- | |||||
| 23 | 3202338 | Corner Trim-wheat |
|
- | |||||
| 23 | 3202340 | Corner Trim-almond |
|
- | |||||
| 23 | 3202337 | Corner Trim-avocado |
|
- | |||||
| 23 | 3202336 | Corner Trim-white |
|
- | |||||
| 23 | 3202339 | Corner Trim-coffee |
|
- | |||||
| 24 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 24 | G174747-01 | Button-plug-white |
|
- | |||||
| 24 | G174747-08 | Button, Plug, Avocado |
|
- | |||||
| 24 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 24 | G174747-10 | Plug-button, Coffee |
|
- | |||||
| 25 | 3001328 | Button-decorative Plug |
|
- | |||||
| 26 | G162661 | Damper |
|
- | |||||
| 27 | G162662 | Nut, Push |
|
- | |||||
| 28 | 3001333 | Knob-damper Control |
|
- | |||||
| 29 | 3001496 | Cover-fan |
|
- | |||||
| 30 | 08016566 | Screw |
|
- | |||||
| 31 | G162179 | Spout, Drain |
|
- | |||||
| 32 | G185279 | Pin Push (2) |
|
- | |||||
| 33 | 3001458 | Tube Drain |
|
- | |||||
| 33 | G176853 | Ring, Seal (non-illustrated) |
|
- | |||||
| 34 | G174705 | Fan Blade |
|
- | |||||
| 35 | 3001001 | Screw-fan Assy (2) (non-illustrated) |
|
- | |||||
| 35 | 08000124 | Ring-orifice |
|
- | |||||
| 36 | G157666 | Bushing (2) |
|
- | |||||
| 37 | G158289 | Motor-fan |
|
- | |||||
| 38 | G185302 | Bracket-front |
|
- | |||||
| 39 | 3001001 | Screw-bracket Connector (non-illustrated) |
|
- | |||||
| 39 | G185303 | Bracket-rear |
|
- | |||||
| 39 | 3001225 | Bracket-connector (non-illustrated) |
|
- | |||||
| 40 | G85642 | Tube, Rubber |
|
- | |||||
| 41 | 3203044 | Button-plug-short Test Hole (non-illustrated) |
|
- | |||||
| 41 | G177529 | Cover, Coil |
|
- | |||||
| 41 | 08016566 | Screw |
|
- | |||||
| 41 | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 42 | G163207 | Hinge-bracket Center |
|
- | |||||
| 43 | G183103 | Screw (2) |
|
- | |||||
| 44 | G142220 | Pin |
|
- | |||||
| 45 | G177534 | Trough Drain |
|
- | |||||
| 46 | 08000302 | Channel-rs & Ls |
|
- | |||||
| 47 | 08010253 | Screw (6) |
|
- | |||||
| 48 | G189341 | Channel Center |
|
- | |||||
| 49 | G187449 | Screw (3) |
|
- | |||||
| 50 | G163669 | Support, Coil Cover (2) |
|
- | |||||
| 51 | G166912 | Button-plug |
|
- | |||||
| 52 | G174733 | Ferrule, Inner |
|
- | |||||
| 53 | G174734 | Ferrule Outer |
|
- | |||||
| *12694 | G187599 | Button-i/m Hole (5) |
|
- |
