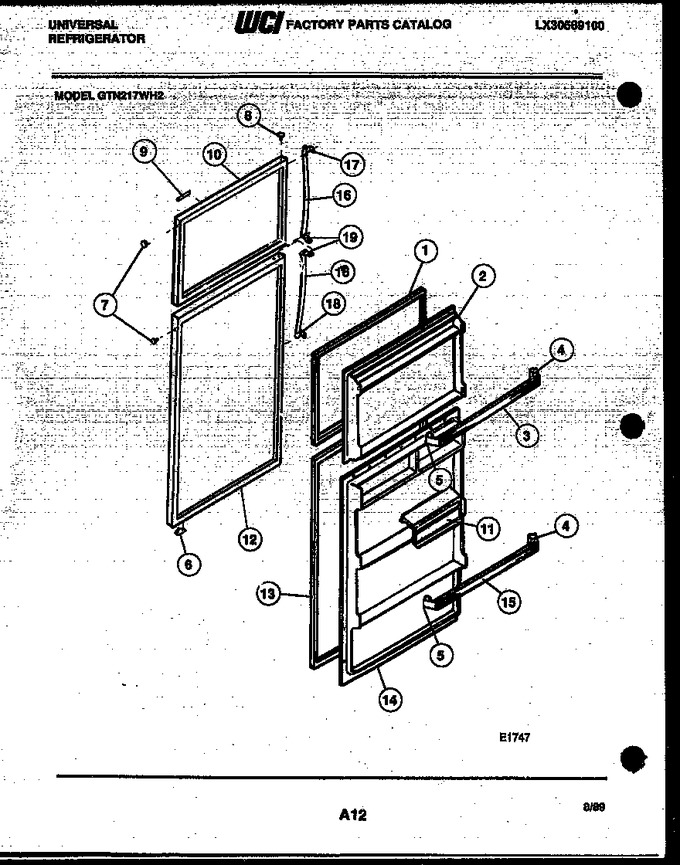

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G186932-14 | Gasket-freezer |
|
- | |||||
| 2 | 3001001 | Screw (24) (non-illustrated) |
|
- | |||||
| 2 | G187307-02 | Panel-inner |
|
- | |||||
| 3 | G161019-67 | Rack (2) |
|
- | |||||
| 4 | G185363-02 | Support Rh (4) |
|
- | |||||
| 5 | G185364-02 | Support Lh (4) |
|
- | |||||
| 6 | G155072 | Stop, Door (2) |
|
- | |||||
| 6 | G185566 | Screw |
|
- | |||||
| 7 | G162977-01 | Button Plug-white |
|
- | |||||
| 7 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 7 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 7 | G162977-11 | Button Plug-almond |
|
- | |||||
| 7 | G162977-09 | Button Plug-wheat |
|
- | |||||
| 8 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 8 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 8 | G169332-09 | Button Plug, Wheat |
|
- | |||||
| 8 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 8 | G169332-01 | Button Plug, White |
|
- | |||||
| 9 | G171161-01 | Frame-nameplate |
|
- | |||||
| 10 | G188158-09 | Panel-outer-wheat |
|
- | |||||
| 10 | G188158-08 | Panel-outer-avocado |
|
- | |||||
| 10 | G188158 | Panel-outer-white |
|
- | |||||
| 10 | 08012007 | Bearing-hinge |
|
- | |||||
| 10 | G188158-11 | Panel-outer-almond |
|
- | |||||
| 10 | G188158-10 | Panel-outer-coffee |
|
- | |||||
| 11 | G178500-14 | Door Compartment (2) |
|
- | |||||
| 12 | G178694-10 | Panel, Outer, Coffee |
|
- | |||||
| 12 | G178694-11 | Panel, Outer, Almond |
|
- | |||||
| 12 | G178694-09 | Panel, Outer, Wheat |
|
- | |||||
| 12 | G178694 | Panel, Outer, White |
|
- | |||||
| 12 | G178694-08 | Panel, Outer, Avocado |
|
- | |||||
| 12 | 08012007 | Bearing-hinge |
|
- | |||||
| 13 | 08015544 | Gasket-refrigerator |
|
- | |||||
| 14 | 3001001 | Screw-panel Mtg (34) (non-illustrated) |
|
- | |||||
| 14 | 3001317 | Panel-inner |
|
- | |||||
| 15 | G161019-44 | Rack-refr Door-top |
|
- | |||||
| 15 | G161019-67 | Rack-refr Door-bottom (non-illustrated) |
|
- | |||||
| 16 | G170495-29 | Grip-handle (2) |
|
- | |||||
| 17 | G179800 | End-top |
|
- | |||||
| 18 | G179801 | End-bottom |
|
- | |||||
| 19 | G187329-01 | End (2) |
|
- | |||||
| *47720 | G185566 | Screw |
|
- |
