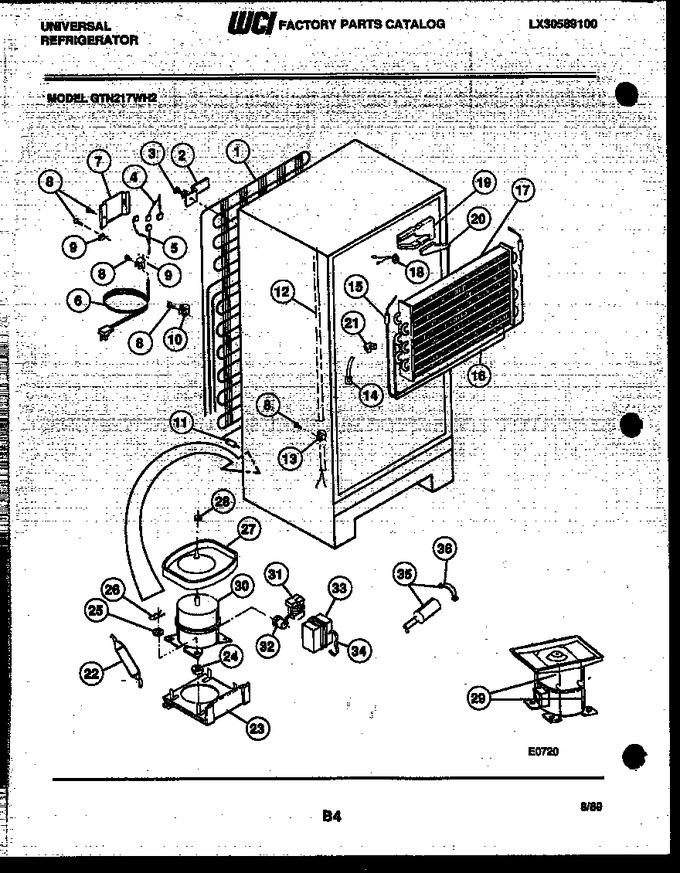

05 - System And Automatic Defrost Parts
06 - Ice Maker And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G163133 | Condenser |
|
- | |||||
| 2 | 08000296 | Bracket-condenser |
|
- | |||||
| 3 | G164820 | Washer-no. 10 Ext Tooth (non-illustrated) |
|
- | |||||
| 3 | G160578 | Screw |
|
- | |||||
| 4 | G168978 | Clamp-harness (non-illustrated) |
|
- | |||||
| 4 | 3001475 | Wiring Harness-control |
|
- | |||||
| 5 | G166062-01 | Wiring, Harness, Compressor |
|
- | |||||
| 6 | G162549-01 | Service Cord |
|
- | |||||
| 7 | G183584 | Cover, Wiring |
|
- | |||||
| 8 | G187009 | Screw-8-15 X 1/2 |
|
- | |||||
| 9 | G27669 | Clamp-wiring/tube |
|
- | |||||
| 10 | G168978 | Clamp-harness |
|
- | |||||
| 11 | 3017691 | Spacer-tube (3) |
|
- | |||||
| 12 | 08000728 | Heat Exchanger |
|
- | |||||
| 13 | 08000133 | Clamp |
|
- | |||||
| 14 | G165546 | Strap-evap/heater (2) |
|
- | |||||
| 15 | G178425-02 | Heater-defrost |
|
- | |||||
| 16 | G166511-02 | Insulator-evap |
|
- | |||||
| 17 | G162506 | Evaporator Coil |
|
- | |||||
| 18 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 19 | G185299 | Insulation Block Rs |
|
- | |||||
| 20 | G185276 | Insulation Plug Rs |
|
- | |||||
| 21 | G188375 | Insulation Block Ls |
|
- | |||||
| 22 | 3007351 | Drier-filter |
|
- | |||||
| 23 | G184599 | Plate-compr Mtg |
|
- | |||||
| 24 | G177617 | Grommet (4) |
|
- | |||||
| 25 | 08003633 | Washer (4) |
|
- | |||||
| 26 | G163204 | Clip (4) |
|
- | |||||
| 27 | G171129 | Pan-defrost Drain (orig Comp) |
|
- | |||||
| 27 | G184715 | Pan-defrost Drain (svc Comp) (non-illustrated) |
|
- | |||||
| 27 | G169873 | Sound Tape-pan (non-illustrated) |
|
- | |||||
| 28 | G164958 | Lock Nut-pan Mtg |
|
- | |||||
| 29 | 3916001 | Pan Retainer Kit-service |
|
- | |||||
| 30 | 3916004 | Compressor W/ Electricals-service |
|
- | |||||
| 31 | 3007173 | Relay |
|
- | |||||
| 32 | 3202863 | Overload |
|
- | |||||
| 32 | 3202891 | Clip-overload (non-illustrated) |
|
- | |||||
| 33 | 08016583 | Cover-terminal |
|
- | |||||
| 34 | 08016584 | Strap-term Cover |
|
- | |||||
| 35 | 3916391 | Capacitor Kit |
|
- | |||||
| 36 | 3001391 | Strap-capacitor Mtg |
|
- | |||||
| *47731 | G189383 | Hot Tube Repair Kit-service |
|
- |
