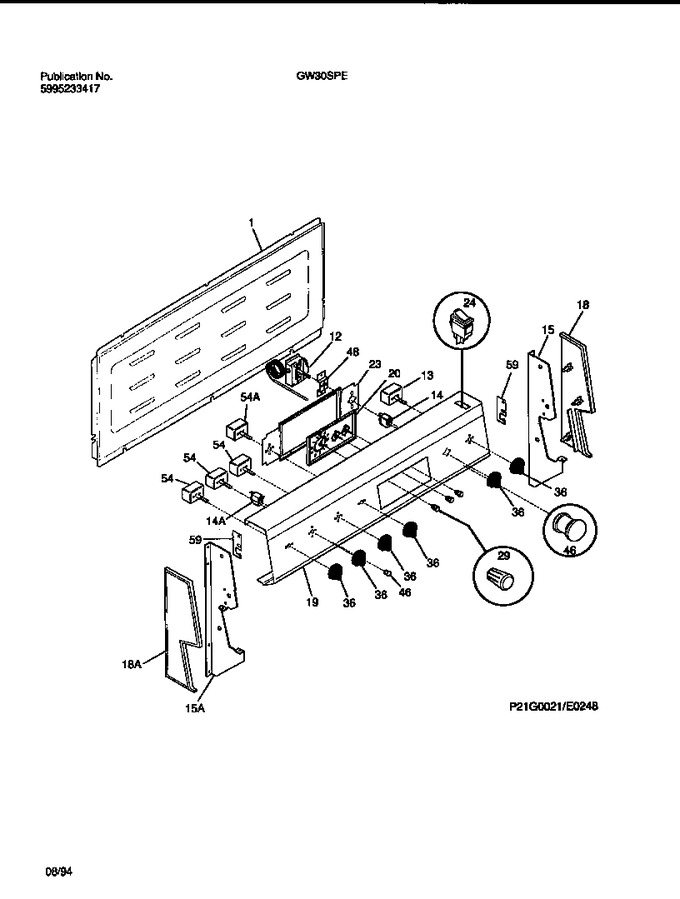

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Shield-backguard, Rear Wall		Appelez-nous	-
12	5303934039		Thermostat-oven		Appelez-nous	-
13	5308015771		Switch-selector		Appelez-nous	-
14	3206088		Light/lamp-indicator, 125 V		Appelez-nous	-
15	53035025201		Support-backguard, Rh		Appelez-nous	-
18	5303282358		End Cap, Black, Rh		Appelez-nous	-
19	5303209193		Panel-control, Metal		Appelez-nous	-
20	5301325730		Clock / Timer, Analog 3 Stem		Appelez-nous	-
23	3204642		Bracket-clock Mtg		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
29	5301167676		Knob-clock		Appelez-nous	-
36	5305156302		Knob-control		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
48	3202099		Bracket-thermostat Mtg		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
59	5308012538		Bracket-hinge Mtg, Bkgd		Appelez-nous	-
14A	5308012563		Light/lamp, Indicator, 250 V		Appelez-nous	-
15A	5374109000		Support-backguard, Lh		Appelez-nous	-
18A	5303282359		End Cap, Black, Lh		Appelez-nous	-
54A	5301313767		Switch-8`` Element		Appelez-nous	-
