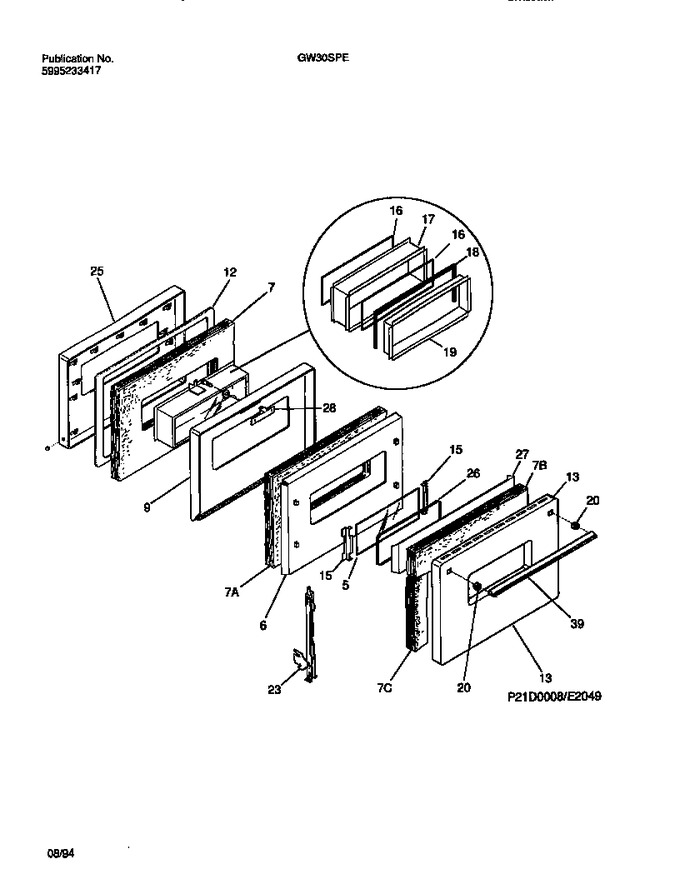

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303212542		Glass-oven Door, Outer		Appelez-nous	-
6	5303212549		Shield-air Wash		Appelez-nous	-
7	5303212545		Insulation-baffle, Oven Door		Appelez-nous	-
9	316041903		Liner-oven Door		Appelez-nous	-
12	3206078		Seal-oven Door		Appelez-nous	-
13	5303212550		Panel-oven Door, White		Appelez-nous	-
15	5303269554		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303212548		Spacer-glass		Appelez-nous	-
18	5303212544		Seal-window		Appelez-nous	-
19	5303212552		Collar-glass Mtg		Appelez-nous	-
20	5308003153		Spacer-handle, (2)		Appelez-nous	-
23	5303207589		Hinge-oven Door, Assembly		Appelez-nous	-
25	5303292734		Liner-door Baffle		Appelez-nous	-
26	5301313568		Trim-j Molding		Appelez-nous	-
27	5303212551		Panel-pad Insulator		Appelez-nous	-
28	5301167830		Strike Plate		Appelez-nous	-
39	5303280334		Handle-drawer/door, Brushed Chrome		Appelez-nous	-
7A	5303212547		Insulation-liner, Oven Door		Appelez-nous	-
7B	5301318805		Insualtion-panel, Oven Door		Appelez-nous	-
7C	5303212546		Insulation, Oven Door, (2)		Appelez-nous	-
