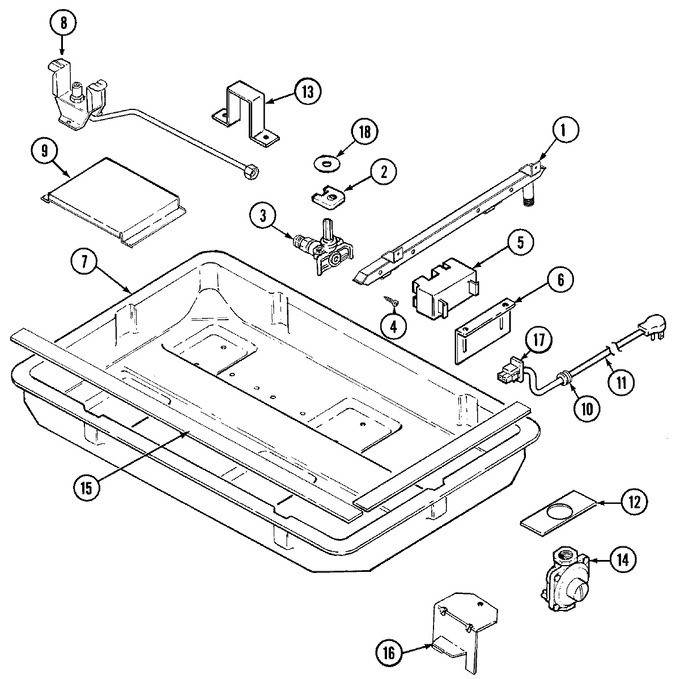

SELECT A DIAGRAM

01 - Gas Controls/body


02 - Top Assembly


03 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004633		Pipe, Manifold	10	Appelez-nous	-
2	WP7403P367-60		Switch, Burner   (Replaces: 7403P367-60)	10			$ 132.10
3	74004635		Valve, Top Burner	10	Appelez-nous	-
3	74004634		Valve, Top Burner	10	Appelez-nous	-
4	71003231		Screw, Valve	10	Appelez-nous	-
5	12001596		Module, Spark   (Replaces: 74003288)	10		Immediately	$ 85.93
6	3801F357-45		Bracket, Spark Module	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74004636		Box, Burner	10	Appelez-nous	-
8	74007111		Fitting, Orifice	12	Appelez-nous	-
8	74004640		Fitting, Orifice Asy (r.f.)	10	Appelez-nous	-
8	74004639		Fitting, Orifice Asy (l.f.)	10	Appelez-nous	-
8	74004638		Fitting, Orifice Asy (l.r.)	10	Appelez-nous	-
8	74004637		Fitting, Orifice Asy (r.r.)	10	Appelez-nous	-
8	74007109		Fitting, Orifice	12	Appelez-nous	-
8	74007110		Fitting, Orifice	12	Appelez-nous	-
8	74007108		Fitting, Orifice	12	Appelez-nous	-
9	4005F427-51		Cover, Access	10	Appelez-nous	-
10	8007P003-60		Bushing, Snap	10	Appelez-nous	-
11	7402P014-60		Cord, Power	10	Appelez-nous	-
12	WP74001380		Seal, Manifold Pipe   (Replaces: 74001380)	10			$ 58.91
13	3801F298-45		Bracket, Main Top	10	Appelez-nous	-
14	74006983		Regulator, Pressure	12			$ 47.10
14	W11170853		Regulator, Pressure   (Replaces: 74001252)	10			$ 283.08
15	8270P100-60		Tape, Foam Seal	10	Appelez-nous	-
16	3801F192-45		Bracket, Tie Down	10	Appelez-nous	-
16	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	10			$ 12.69
17	74002230		Block, Disconnect (male)	10	Appelez-nous	-
17	74002301		Block, Disconnect	10	Appelez-nous	-
18	7724P004-60		Cover, Burner Valve	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
