SELECT A DIAGRAM

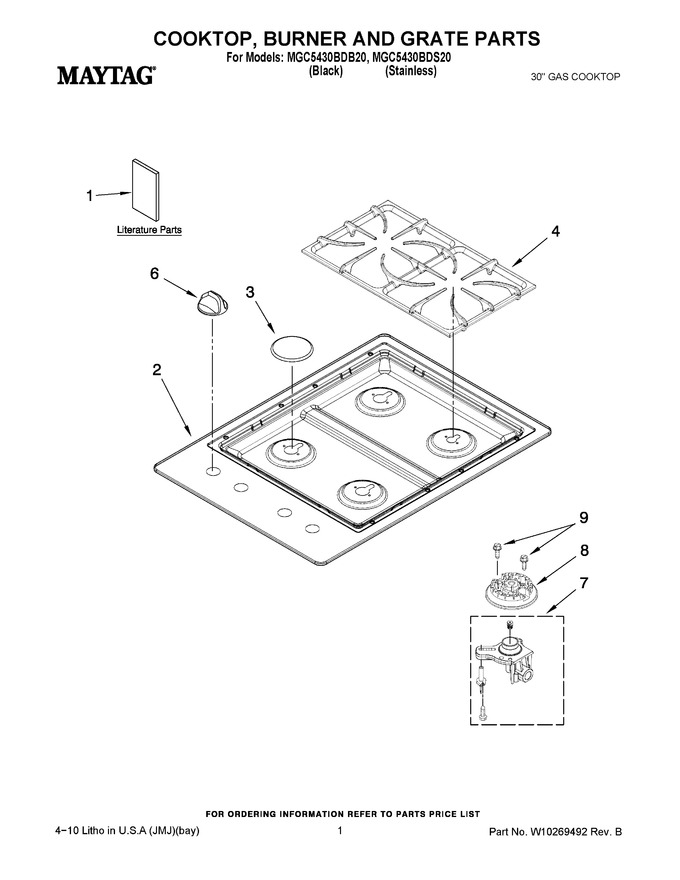

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P582-60 | Installation Instructions |
|
- | |||||
| 1 | 8112P338-60 | Use & Care Guide |
|
- | |||||
| 1 | 8104P828-60 | Wiring Diagram (english) |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 2001F191-09 | Cooktop (black) |
|
- | |||||
| 2 | 2001F190-55 | Cooktop (stainless) |
|
- | |||||
| 3 | WPW10183370 | Cap, Burner (lr) (Replaces: W10183370) |
|
$ 58.28 | |||||
| 3 | WPW10183369 | Cap, Burner (rr & Lf) (Replaces: W10183369) |
|
$ 58.60 | |||||
| 3 | WPW10183371 | Cap, Burner (rf) (Replaces: W10183371) |
|
$ 93.15 | |||||
| 4 | 7518P400-60 | Grate, Burner (black) |
|
- | |||||
| 6 | WP74011287 | Knob, Control (4) (black) (Replaces: 7733P489-60) |
|
Immediately | $ 21.94 | ||||
| 7 | WP74007691 | Holder, Orifice (rr & Lf (9.2k)) (Replaces: 7527P007-60) |
|
Immediately | $ 107.26 | ||||
| 7 | 7527P006-60 | Holder, Orifice (lr (9k)) |
|
$ 45.89 | |||||
| 7 | WP74007692 | Holder, Orifice (rf (12k)) (Replaces: 7527P005-60) |
|
$ 104.54 | |||||
| 8 | WPW10406797 | Head, Burner (Replaces: 8286182) |
|
$ 79.64 | |||||
| 9 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 |
