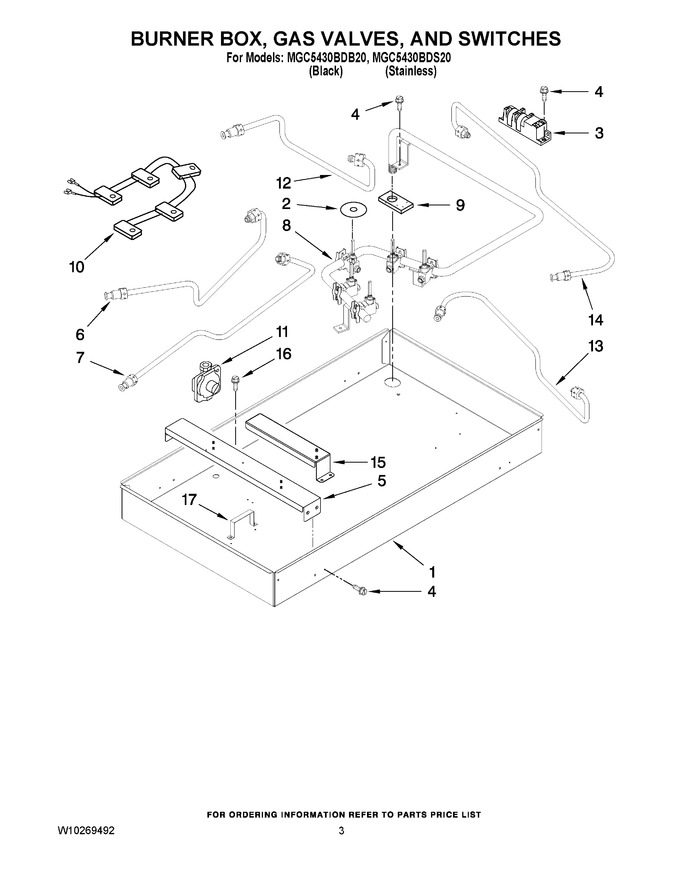

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10176503 | Burner Box |
|
- | |||||
| 2 | WP74007705 | Seal, Valve Shaft (Replaces: 8008P065-60) |
|
Immediately | $ 6.80 | ||||
| 3 | WP7431P064-60 | Spark, Module (Replaces: 7431P064-60) |
|
$ 278.09 | |||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F848-51 | Bracket, Orifice Holder (2) |
|
$ 66.15 | |||||
| 6 | 7506P375-60 | Tubing, Gas Burner (left) (2) |
|
$ 69.25 | |||||
| 7 | 7506P374-60 | Tubing, Gas Burner (right) (2) |
|
$ 101.62 | |||||
| 8 | 7513P356-60 | Pipe, Manifold (includes Valves) |
|
- | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 10 | W10138052 | Harness & Switches (Replaces: 7450P081-60) |
|
$ 195.08 | |||||
| 11 | W11170853 | Regulator, Pressure (Replaces: 7510P088-60) |
|
$ 283.08 | |||||
| 12 | 7506P364-60 | Tubing, Center |
|
- | |||||
| 13 | 7506P365-60 | Tubing, Rf |
|
- | |||||
| 14 | 7506P366-60 | Tubing, Rr |
|
- | |||||
| 15 | 3801F878-51 | Bracket, Ctr Hldr |
|
- | |||||
| 16 | WP71001171 | Screw, Ground (Replaces: 7101P460-60) |
|
$ 6.26 | |||||
| 17 | 3801F933-51 | Bracket, Support |
|
- |
