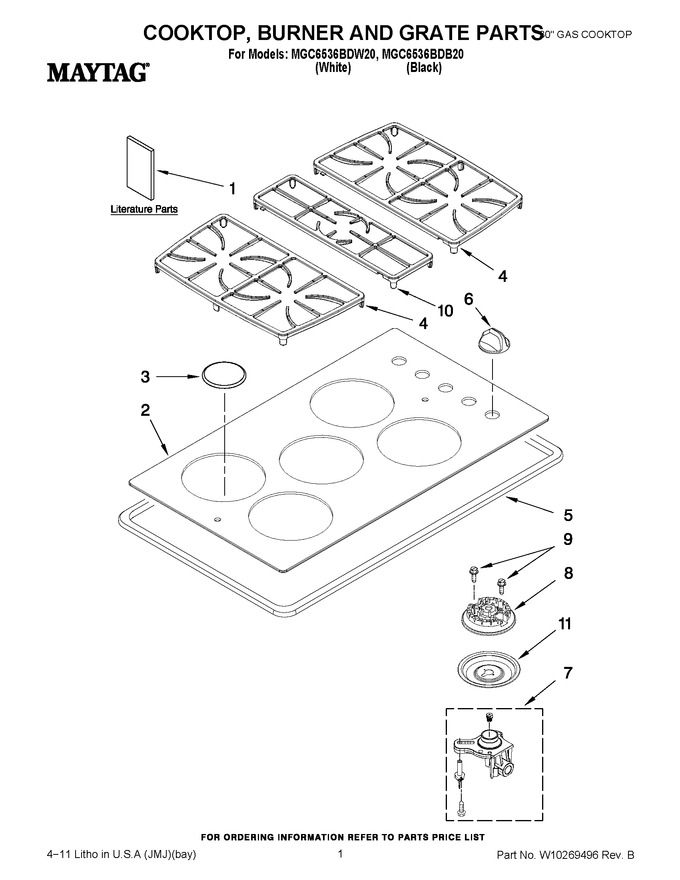

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P595-60		Installation Instructions		Appelez-nous	-
1	8112P339-60		Use & Care Guide		Appelez-nous	-
1	W10204418		Wiring Diagram (english)		Appelez-nous	-
1	W10205174		Wiring Diagram (french)		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	5705M242-09		Cooktop (black)		Appelez-nous	-
2	5705M242-81		Cooktop (white)		Appelez-nous	-
3	W10173833		Cap, Burner (black)		Appelez-nous	-
3	WPW10169985		Cap, Burner (black, Ctr)   (Replaces: W10169985)				$ 57.13
3	WP74007752		Cap, Burner (grey)   (Replaces: 7504P205-60)				$ 98.17
3	7504P139-60		Cap, Burner (grey, Ctr)		Appelez-nous	-
4	7518P274-60		Grate, Burner (black)		Appelez-nous	-
4	7518P273-60		Grate, Burner (grey)		Appelez-nous	-
5	8270P107-60		Seal, Foam		Appelez-nous	-
6	WP74011276		Knob, Control (4) (white)   (Replaces: 7733P490-60)			Immediately	$ 20.42
6	WP74011287		Knob, Control (4) (black)   (Replaces: 7733P489-60)			Immediately	$ 21.94
7	WP7527P023-60		Holder, Orifice (center)   (Replaces: 7527P023-60)				$ 98.03
7	WP74007691		Holder, Orifice (rr & Lf)   (Replaces: 7527P007-60)			Immediately	$ 107.26
7	WP7527P026-60		Holder, Orifice (lr)   (Replaces: 7527P026-60)			Immediately	$ 95.68
7	WP7527P028-60		Holder, Orifice (rf)   (Replaces: 7527P028-60)			Immediately	$ 100.76
8	WPW10406243		Head, Burner Ctr.   (Replaces: 8286181)			Immediately	$ 33.50
8	WPW10406797		Head, Burner (4)   (Replaces: 8286182)				$ 79.64
9	WP3368921		Screw   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	7518P275-60		Grate, Center (grey)		Appelez-nous	-
10	7518P276-60		Grate, Center (black)		Appelez-nous	-
11	3424F031-09		Bowl, Drip				$ 112.88
11	3424F030-09		Bowl, Drip Ctr.				$ 25.54

    View Diagram in Separate Window       Print Part List
