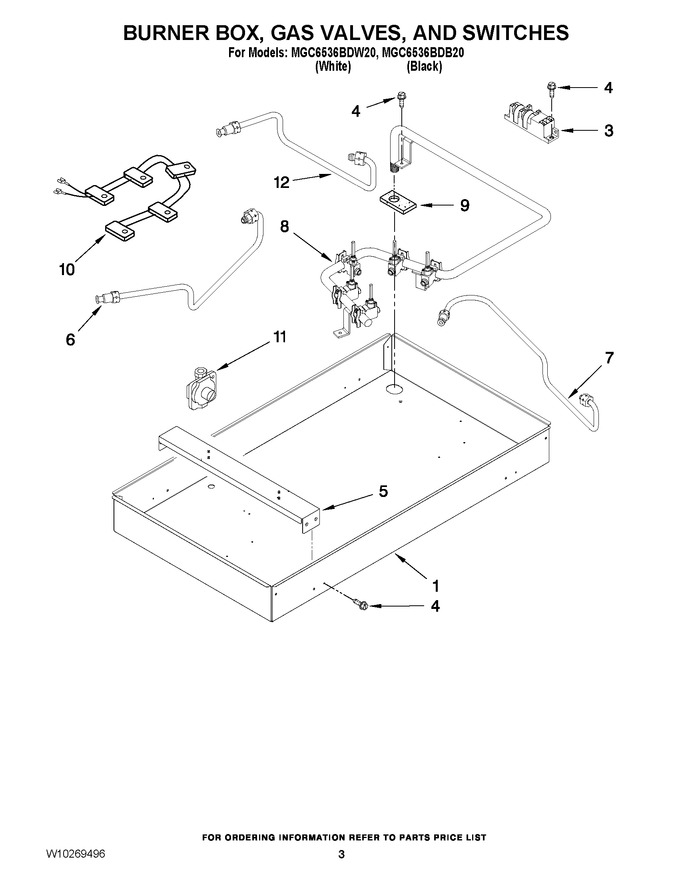

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10176506 | Burner Box |
|
- | |||||
| 3 | WP7431P066-60 | Spark Module (Replaces: 7431P066-60) |
|
Immediately | $ 285.00 | ||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F849-51 | Bracket, (3) Orifice Holder (2) |
|
- | |||||
| 6 | 7506P327-60 | Tubing, Gas Burner (left) (2) |
|
- | |||||
| 7 | 7506P374-60 | Tubing, Gas Burner (right) (2) |
|
$ 101.62 | |||||
| 8 | 7513P354-60 | Pipe, Manifold (includes Valves) |
|
- | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 10 | W10184469 | Harness & Switches |
|
- | |||||
| 11 | W11087445 | Regulator,pressure (Replaces: 7510P093-60) |
|
Immediately | $ 177.34 | ||||
| 12 | 7506P329-60 | Tubing, Gas Burner, Center |
|
- |
