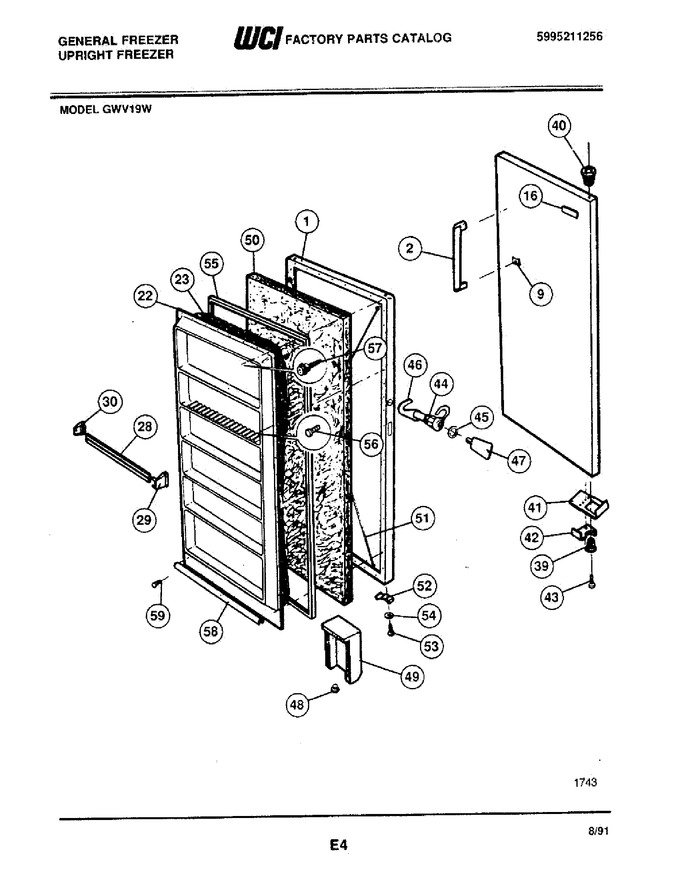

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303280426		Panel Door		Appelez-nous	-
2	5303270292		Handle Door		Appelez-nous	-
9	F57154		Fastener Handle		Appelez-nous	-
16	5303270311		Nameplate		Appelez-nous	-
22	5303280428		Panel Inner		Appelez-nous	-
23	5303925098		Insulation				$ 120.65
28	08037980		Shelf Front Narrow		Appelez-nous	-
29	08005524		End Cap Rh		Appelez-nous	-
30	08005525		End Cap Lh		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	5300114366		Washer		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket		Appelez-nous	-
54	09950839		Washer, Bracket		Appelez-nous	-
55	3206256		Gasket-door				$ 248.43
56	216858001		Screw-door Panel   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw Shoulder Panel		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303212828		Rivet Gasket				$ 16.63

    View Diagram in Separate Window       Print Part List
