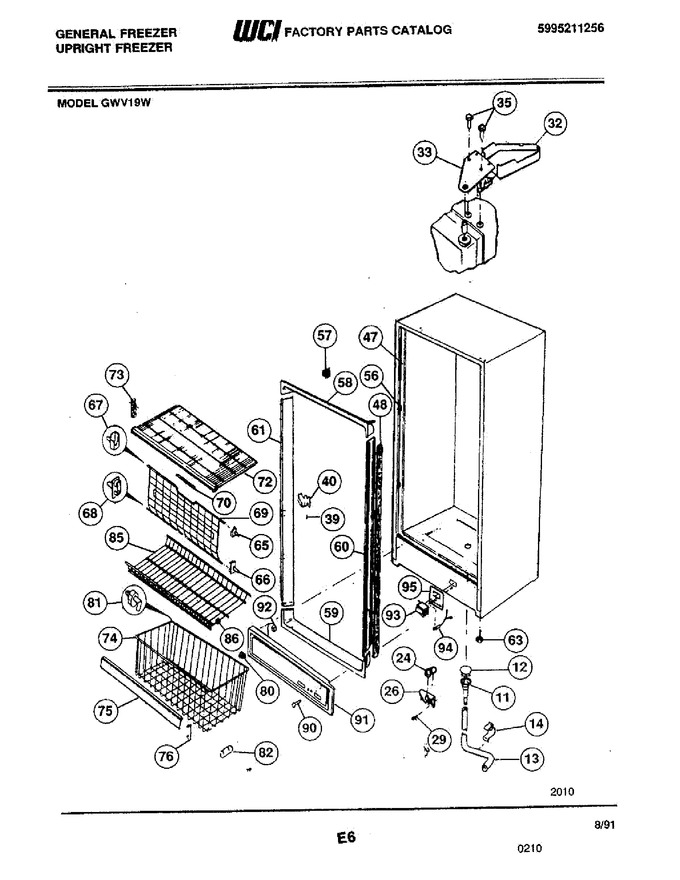

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210383		Hinge, Bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Top Hinge		Appelez-nous	-
35	5303212937		Screw-top Hinge		Appelez-nous	-
39	216858001		Screw-latch Catch   (Replaces: 5303161215)			Immediately	$ 10.85
40	5309949966		Latch-catch		Appelez-nous	-
47	3205376		Insulation		Appelez-nous	-
48	5303925098		Insulation				$ 120.65
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037401		Retainer				$ 2.85
58	06594557		Breaker Top		Appelez-nous	-
59	06594562		Breaker, Bottom		Appelez-nous	-
60	5303280424		Breaker-hinge		Appelez-nous	-
61	06599858		Breaker-lock Side		Appelez-nous	-
63	5303205540		Leveling Leg		Appelez-nous	-
65	06599973		Support, Top Rh				$ 6.49
66	06599975		Support, Bottom Rh				$ 5.99
67	06599974		Support, Top Lh		Appelez-nous	-
69	08037973		Drop Front		Appelez-nous	-
70	06599971		Handle Drop Front		Appelez-nous	-
90	5309950066		Pin Fastener		Appelez-nous	-
91	3200983		Base Trim		Appelez-nous	-
92	5303280423		Bumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
