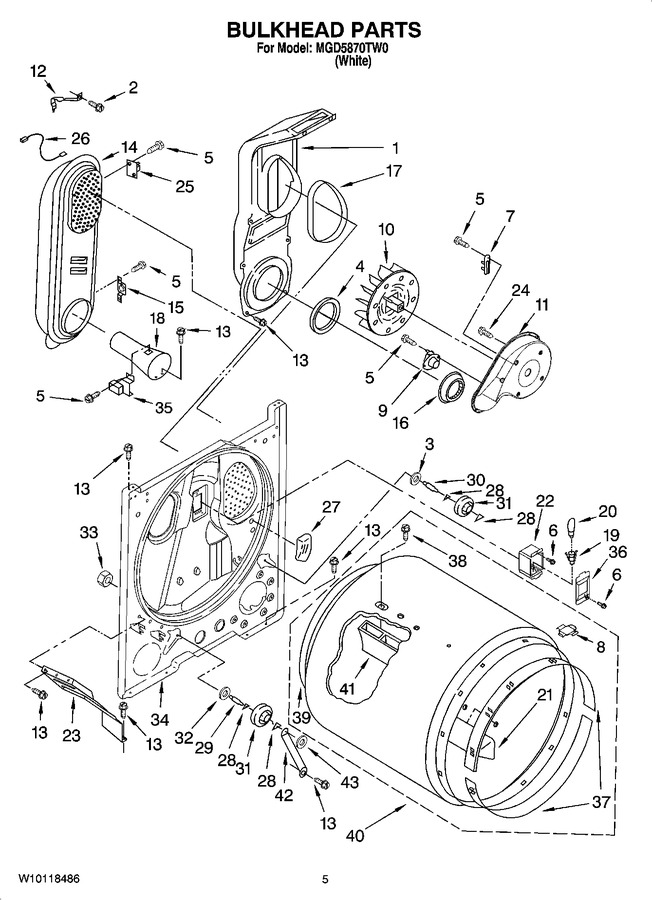

03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 157.51 | |||||
| 2 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.04 | |||||
| 3 | 99002633 | Thermostat, Limiting |
|
$ 33.69 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 16.41 | ||||
| 5 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 6 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.01 | ||||
| 7 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 8 | 8066086 | Drum Hole Plug |
|
$ 9.68 | |||||
| 9 | WP8318268 | Thermostat, Internal-bias (Replaces: 8318268) |
|
Immediately | $ 72.51 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 160.16 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 12.90 | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 14 | 279980 | Box, Heater (Replaces: 8530285) |
|
$ 283.96 | |||||
| 15 | W11050897 | Thermostat, 205 F (96c) (Replaces: 3403140) |
|
Immediately | $ 13.77 | ||||
| 16 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 20.06 | |||||
| 17 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 7.77 | ||||
| 18 | WP8066049 | Funnel, Burner (Replaces: 8066049) |
|
$ 134.15 | |||||
| 19 | W11700522 | Socket Assembly (Replaces: W10136369) |
|
$ 65.84 | |||||
| 20 | WP22002263 | Bulb (Replaces: 3406126) |
|
Immediately | $ 12.29 | ||||
| 21 | WP3403636 | Baffle, Drum (Replaces: 3403636) |
|
$ 124.79 | |||||
| 22 | 3977373 | Bracket, Drum Light |
|
$ 95.21 | |||||
| 23 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 50.47 | |||||
| 24 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 25 | W11050897 | Kit, Thermal Cut-off (includes Illus. 15) (Replaces: 280010) |
|
Immediately | $ 13.77 | ||||
| 26 | WP3401707 | Wire, Jumper (Replaces: 3401707) |
|
$ 74.22 | |||||
| 27 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 136.81 | |||||
| 28 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 29 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 65.44 | ||||
| 30 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 42.57 | ||||
| 31 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 26.58 | ||||
| 32 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.47 | |||||
| 33 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 6.47 | ||||
| 34 | W10828905 | Bulkhead (Replaces: 3403414) |
|
Immediately | $ 323.37 | ||||
| 35 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 36 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 27.98 | |||||
| 37 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 59.60 | ||||
| 38 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 7.20 | ||||
| 39 | W10612022 | Seal, Rear Drum (Replaces: 3406130) |
|
Immediately | $ 51.44 | ||||
| 40 | W10899578 | Drum, Assembly (Replaces: 695587) |
|
$ 321.89 | |||||
| 41 | WP692490 | Baffle, Drum (2) (Replaces: 692490) |
|
$ 143.34 | |||||
| 42 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 18.85 | |||||
| 43 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.07 |
