SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

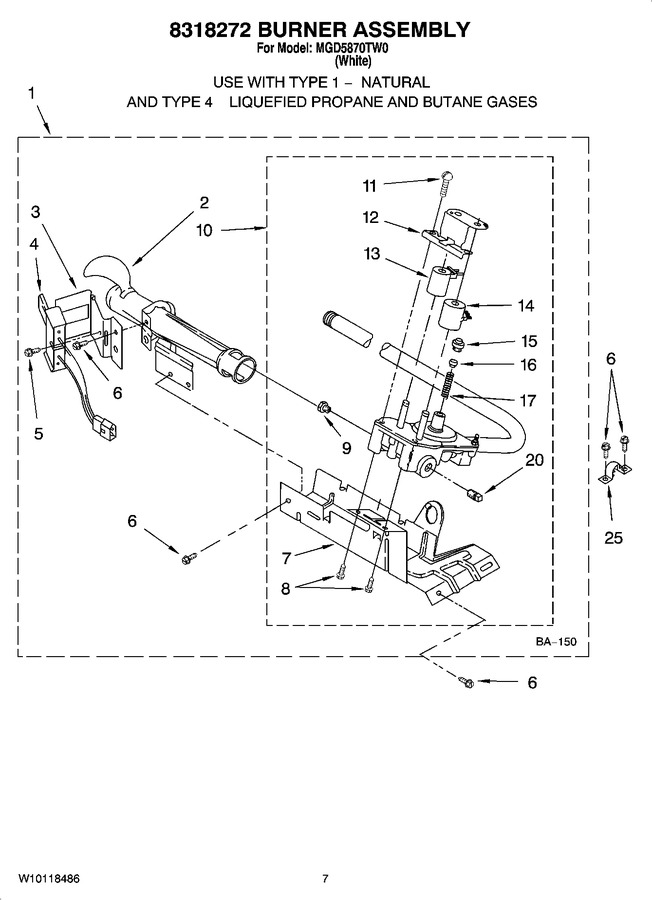

04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10823508		Burner Assembly 60 Hz. (type 1) (white Rodgers)   (Replaces: 8318272)				$ 441.84
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	693986		Base, Burner		Appelez-nous	-
8	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 6.47
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 31.37
9	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 31.37
9	WP234826		Orifice, Burner (type 1)   (Replaces: 234826)				$ 33.66
10	WP8318277		Valve, 60 Hz. (includes Pipe & Illus. 7)   (Replaces: 8318277)				$ 292.78
11	694421		Screw, 8-32 X 1/2 (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 29.57
14	279834		Coil, 60 Hz.(split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 29.57
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
25	341029		Clamp, Pipe		Appelez-nous	-
NI	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	49572A		Conversion Kit (type 1) To Type (4) L.p.g.   (Replaces: 694572)			Immediately	$ 32.57
NI	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 48.47
NI	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
NI	3406839		Dry Rack			Immediately	$ 59.11
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 10.58
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
