01 - Cover

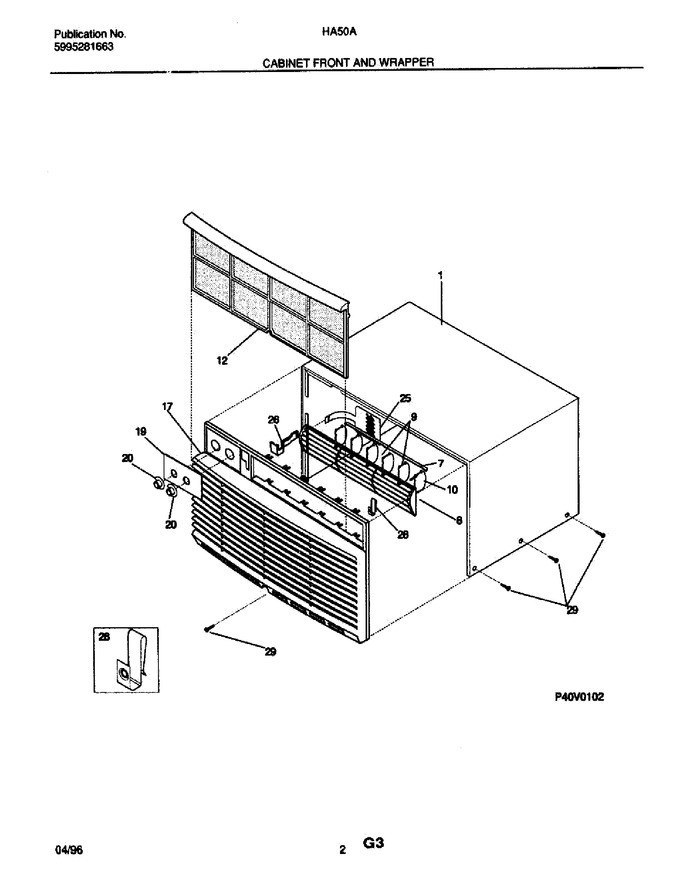

03 - Cabinet Front And Wrapper
05 - Control Parts
07 - Air Handling Parts
09 - Compressor
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303302856 | Cabinet, With Insulation |
|
- | |||||
| 7 | 309318201 | Link-louvers |
|
- | |||||
| 8 | 309620001 | Louver,horizontal |
|
- | |||||
| 9 | 309620201 | Louver-vertical |
|
- | |||||
| 10 | 309620202 | Louver-vertical W/handle |
|
- | |||||
| 12 | 309619901 | Filter |
|
- | |||||
| 17 | 309620301 | Front,cabinet,complete |
|
- | |||||
| 19 | 309318401 | Dial Plate |
|
- | |||||
| 20 | 309318301 | Knob-control |
|
- | |||||
| 25 | 5303317476 | Vent Door |
|
- | |||||
| 26 | 309620401 | Handle,door |
|
- | |||||
| 28 | 309100401 | Clip,cabinet Front |
|
- | |||||
| 29 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- |
