01 - Cover
03 - Cabinet Front And Wrapper

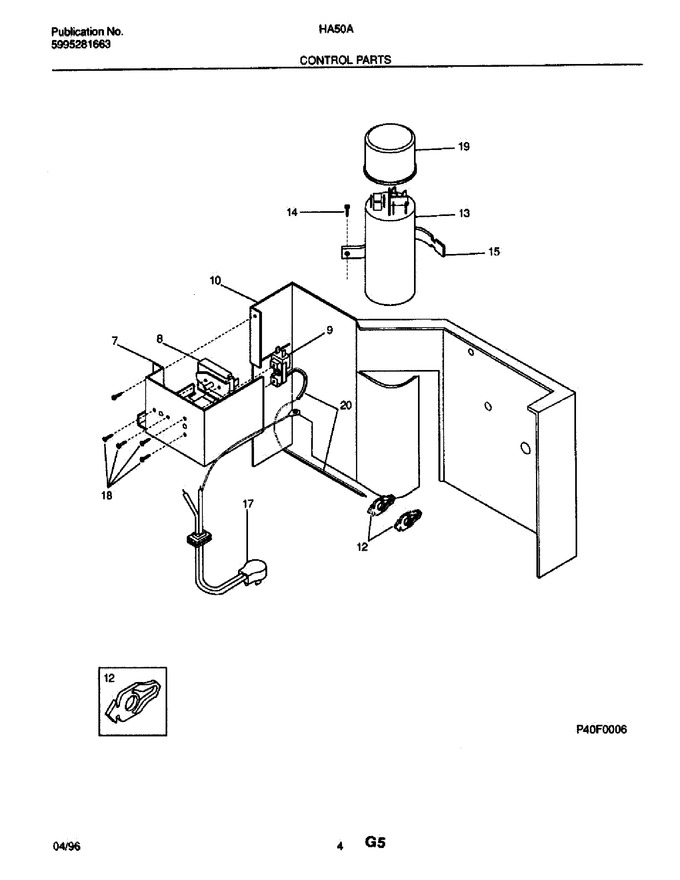

05 - Control Parts
07 - Air Handling Parts
09 - Compressor
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309602502 | Control Box |
|
- | |||||
| 8 | 5303313962 | Switch-selector |
|
$ 188.69 | |||||
| 9 | 5303302852 | Control-temperature |
|
$ 203.91 | |||||
| 10 | 309602401 | Bulkhead |
|
- | |||||
| 12 | 309101202 | Clip-control Bulb |
|
- | |||||
| 13 | 5303303128 | Capacitor, 370 V, 20 Mfd |
|
- | |||||
| 14 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 17 | 5303317236 | Cord-electric Power, 115v |
|
- | |||||
| 18 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- |
