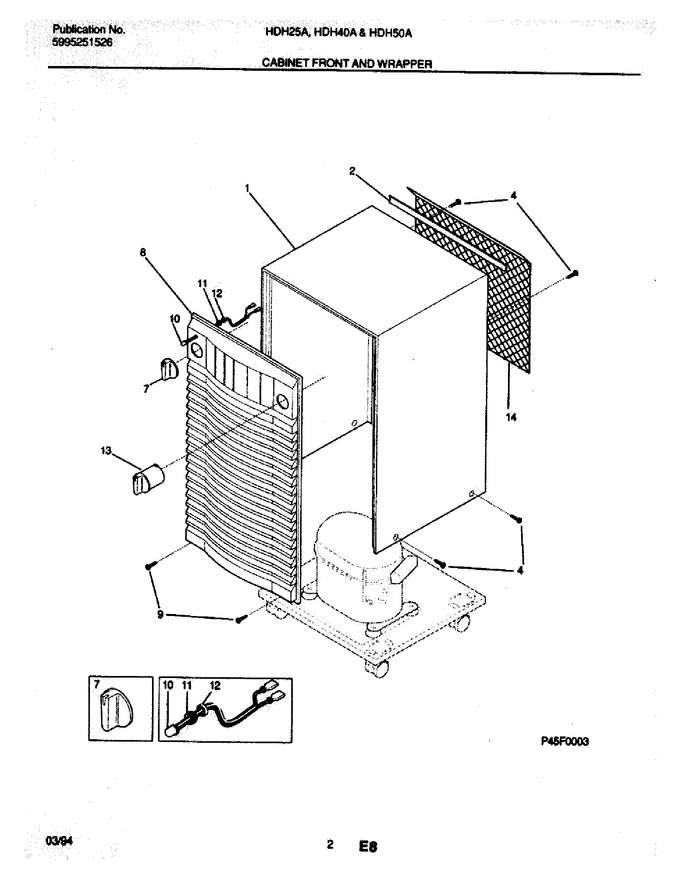

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303882 | Wrapper |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 5303015427 | Screw |
|
- | |||||
| 7 | 327600901 | Knob-control |
|
- | |||||
| 8 | 327600802 | Panel-front |
|
- | |||||
| 9 | 5303271346 | Screw-front |
|
- | |||||
| 10 | 327100501 | Light |
|
- | |||||
| 11 | 327100502 | Bezel-light |
|
- | |||||
| 12 | 327100503 | Clip-light |
|
- | |||||
| 13 | 327100601 | Box-fragrance |
|
- | |||||
| 327100101 | Pellets-fragrance |
|
- |
