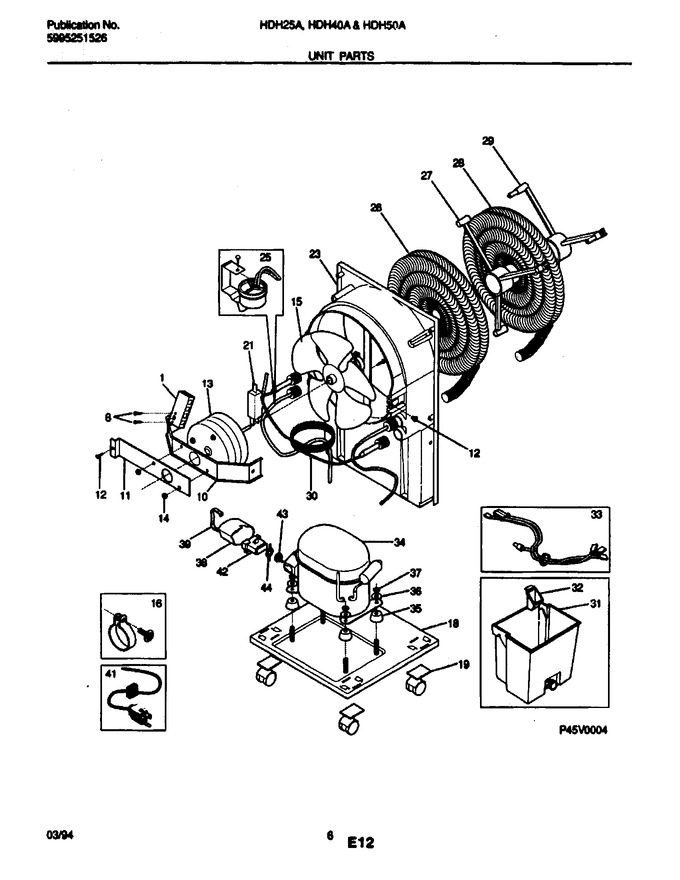

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296823		Humidistat Control				$ 142.17
8	5303007620		Screw				$ 9.31
10	5303296828		Bracket-motor		Appelez-nous	-
11	5303296829		Bracket-dampener		Appelez-nous	-
12	3002801		Screw-bracket		Appelez-nous	-
13	5303289838		Motor-fan		Appelez-nous	-
14	08007481		Nut				$ 5.81
15	5308016448		Fan Blade		Appelez-nous	-
16	5303303699		Clamp		Appelez-nous	-
18	5303303502		Base W/casters		Appelez-nous	-
19	5303275278		Caster				$ 30.40
21	5308016437		Switch-bucket Shut-off				$ 41.55
23	5303303501		Shroud, 23		Appelez-nous	-
25	5303304035		Thermostat Defrost		Appelez-nous	-
26	3017458		Condenser		Appelez-nous	-
27	08016455		Clamp-evaporator Inner		Appelez-nous	-
28	3017954		Evaporator		Appelez-nous	-
29	08016454		Clamp-evaporator Outer		Appelez-nous	-
30	3014461		Capillary Tube, Cut To 28``		Appelez-nous	-
31	5303303883		Bucket		Appelez-nous	-
32	5303272520		Float		Appelez-nous	-
33	5303303887		Wiring Harness		Appelez-nous	-
34	5303271878		Compressor		Appelez-nous	-
35	5303001777		Grommet-compressor, (4)		Appelez-nous	-
36	08002956		Washer-compressor		Appelez-nous	-
37	08012645		Nut-compressor		Appelez-nous	-
38	3003005		Cover-terminal		Appelez-nous	-
39	3003006		Strap-cover		Appelez-nous	-
40	5303003020		Overload/relay		Appelez-nous	-
41	5303279143		Cord-power		Appelez-nous	-
	327100001		Clip-switch To Shroud		Appelez-nous	-
