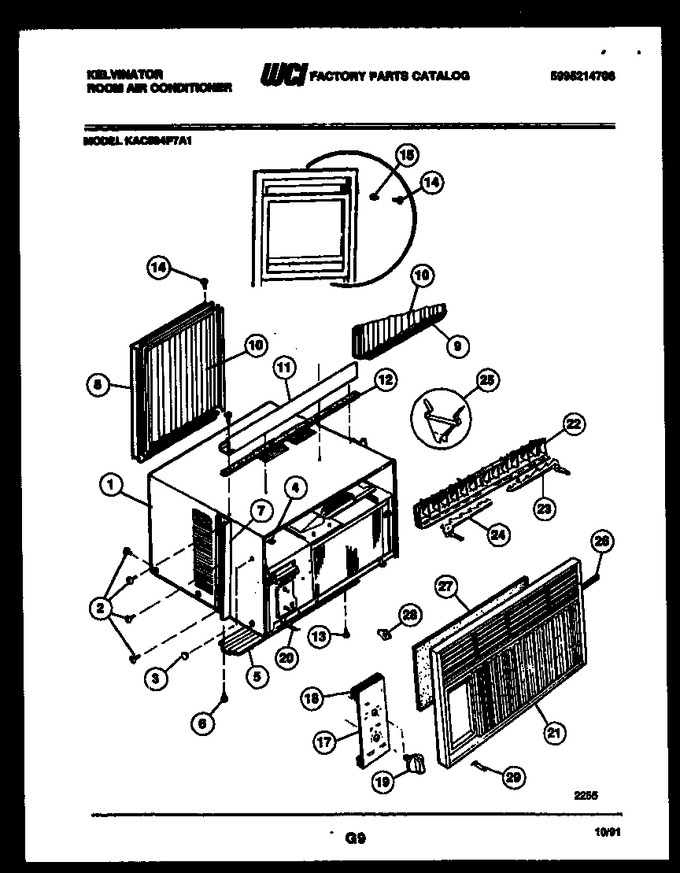

02 - Cabinet Parts
03 - Air Handling Parts
04 - Electric Parts
05 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 3015312 | Screw |
|
- | |||||
| 3 | 5303271346 | Screw-front |
|
- | |||||
| 5 | 530327002 | Rail Bottom |
|
- | |||||
| 6 | 3001806 | Screw |
|
- | |||||
| 7 | 5303270073 | Retainer |
|
- | |||||
| 8 | 5303270061 | Frame Extension Lh |
|
- | |||||
| 9 | 5303270062 | Frame Extension Rh |
|
- | |||||
| 10 | 5303270075 | Accordian Closure |
|
- | |||||
| 11 | 5303270064 | Rail Top |
|
- | |||||
| 12 | 08016226 | Seal |
|
- | |||||
| 13 | 08016080 | Screw-leveling |
|
- | |||||
| 14 | 5308002974 | Screw |
|
- | |||||
| 15 | 5303211056 | Bracket Window |
|
- | |||||
| 17 | 3018313 | Dial Plate |
|
- | |||||
| 18 | 5303001861 | Seal |
|
- | |||||
| 19 | 5303017300 | Knob (2) |
|
- | |||||
| 20 | 5303270058 | Service Cord |
|
- | |||||
| 21 | 5303273259 | Frame |
|
- | |||||
| 22 | 5303002457 | Louver & Link Assy |
|
- | |||||
| 23 | 5303002160 | Link-rh |
|
- | |||||
| 24 | 08017146 | Link-lh |
|
- | |||||
| 25 | 5303001844 | Clip-link |
|
- | |||||
| 26 | 3017137 | Seal-mullion |
|
- | |||||
| 27 | 08009018 | Filter |
|
- | |||||
| 28 | 3203495 | Clip |
|
- | |||||
| 29 | 3201472 | Clip |
|
- | |||||
| 15A | 3002603 | Seal Window Sash (non-illustrated) |
|
- | |||||
| 21A | 3018314 | Front Complete (non-illustrated) |
|
- | |||||
| 3A | 08010928 | Nut-screw (non-illustrated) |
|
- |
