View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Air Handling Parts
04 - Electric Parts
05 - Unit Parts
New Model Search:

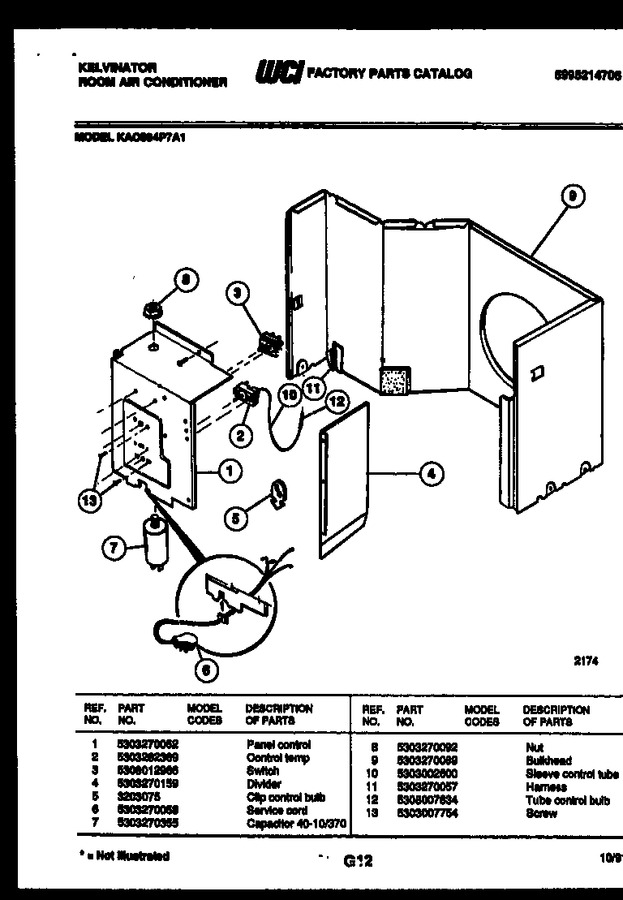

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270052 | Panel Control |
|
- | |||||
| 2 | 5303262369 | Control Temp |
|
- | |||||
| 3 | 5308012966 | Switch |
|
- | |||||
| 4 | 5303270159 | Divider |
|
- | |||||
| 5 | 3203075 | Clip-control Bulb |
|
- | |||||
| 6 | 5303270058 | Service Cord |
|
- | |||||
| 7 | 5303270355 | Capacitor 40-10/370 |
|
- | |||||
| 8 | 5303270092 | Nut |
|
- | |||||
| 9 | 5303270089 | Bulkhead |
|
- | |||||
| 10 | 5303002600 | Sleeve-control Tube |
|
- | |||||
| 11 | 5303270057 | Harness |
|
- | |||||
| 12 | 5308007834 | Tube Control Bulb |
|
- | |||||
| 13 | 5303007754 | Screw |
|
- |
