02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

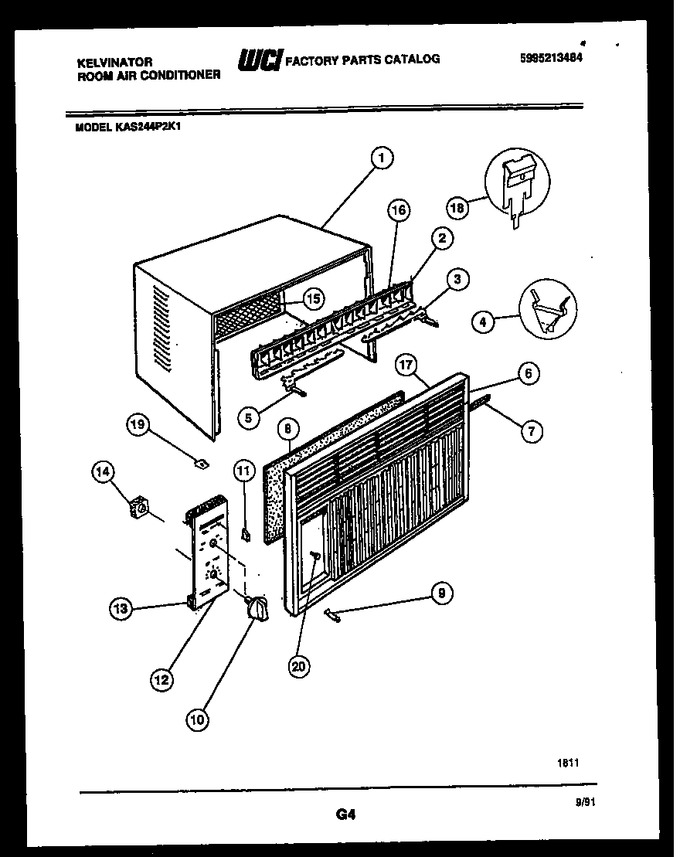

| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303002459 | Vert-louver Link Assy |
|
- | |||||
| 3 | 5303002162 | Link-vert Louver Rh |
|
- | |||||
| 4 | 5303001844 | Spring-clip Link Dent |
|
- | |||||
| 5 | 5303002163 | Link-vert Louver Lh |
|
- | |||||
| 6 | 5303271830 | Frame |
|
- | |||||
| 7 | 3017299 | Seal Mullion |
|
- | |||||
| 8 | 5303014139 | Filter |
|
- | |||||
| 9 | 3015325 | Front Brace |
|
- | |||||
| 10 | 5300331902 | Knob-control (2) |
|
- | |||||
| 11 | 5303002189 | Knob-slide |
|
- | |||||
| 12 | 5303211204 | Plate-dial |
|
- | |||||
| 13 | 5303001984 | Seal-dial |
|
- | |||||
| 14 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 15 | 5303016831 | Grille Rear |
|
- | |||||
| 16 | 3002435 | Frame Louvers |
|
- | |||||
| 17 | 5303271831 | Seal Top & Side |
|
- | |||||
| 18 | 3200447 | Clip |
|
- | |||||
| 19 | 3203495 | Clip-filter |
|
- | |||||
| 20 | 3017304 | Screw-front |
|
- | |||||
| 6A | 5303018279 | Front-complete (non-illustrated) |
|
- |
