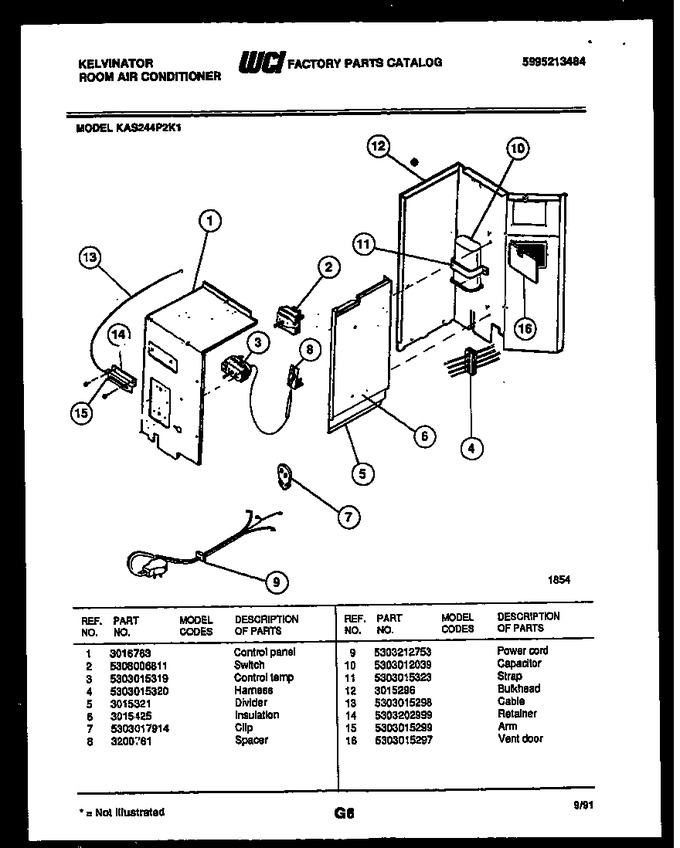

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016763 | Control Panel |
|
- | |||||
| 2 | 5308006811 | Switch |
|
$ 33.65 | |||||
| 3 | 5303015319 | Control Temp |
|
- | |||||
| 4 | 5303015320 | Harness |
|
- | |||||
| 5 | 3015321 | Divider |
|
- | |||||
| 6 | 3015425 | Insulation |
|
- | |||||
| 7 | 5303017914 | Clip |
|
- | |||||
| 8 | 3200761 | Spacer |
|
- | |||||
| 9 | 5303212753 | Power Cord |
|
- | |||||
| 10 | 5303012039 | Capacitor |
|
- | |||||
| 11 | 5303015323 | Strap |
|
- | |||||
| 12 | 3015296 | Bulkhead |
|
- | |||||
| 13 | 5303015298 | Cable |
|
- | |||||
| 14 | 5303202999 | Retainer |
|
- | |||||
| 15 | 5303015299 | Arm |
|
- | |||||
| 16 | 5303015297 | Vent Door |
|
- |
