SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Body Parts

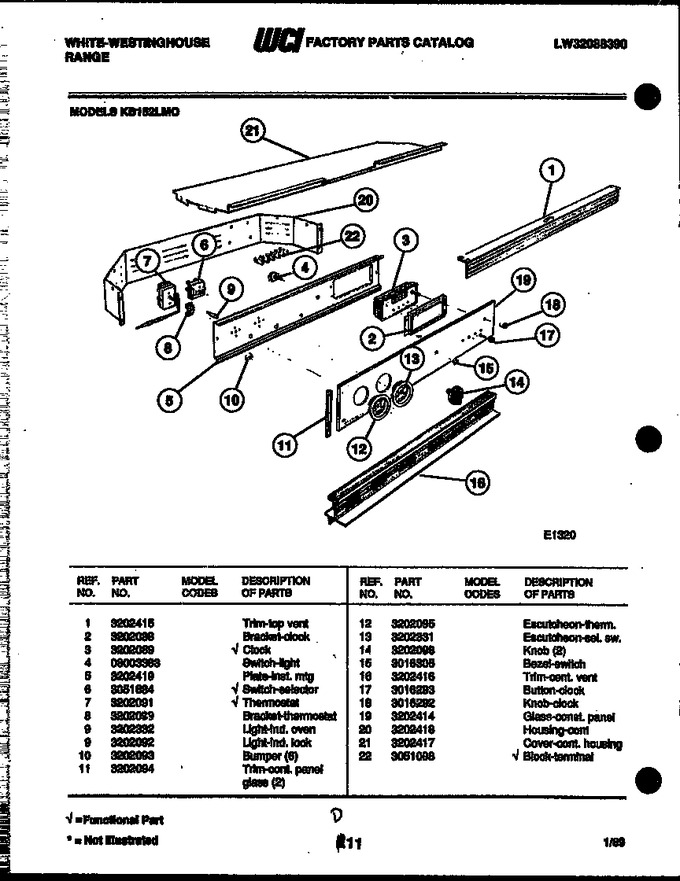

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202415		Trim-top Vent		Appelez-nous	-
2	3202088		Bracket-clock		Appelez-nous	-
3	3202089		Clock		Appelez-nous	-
4	08003383		Switch-light		Appelez-nous	-
5	3202419		Plate-inst Mtg		Appelez-nous	-
6	3051684		Switch-selector		Appelez-nous	-
7	3202091		Thermostat		Appelez-nous	-
8	3202099		Bracket-thermostat		Appelez-nous	-
9	3202332		Light-ind. Oven		Appelez-nous	-
9	3202092		Light-ind. Lock		Appelez-nous	-
10	3202093		Bumper (6)		Appelez-nous	-
11	3202094		Trim-cont. Panel Glass (2)		Appelez-nous	-
12	3202095		Escutcheon-therm.		Appelez-nous	-
13	3202331		Escutcheon-sel. Sw.		Appelez-nous	-
14	3202098		Knob (2)		Appelez-nous	-
15	3016305		Bezel-switch		Appelez-nous	-
16	3202416		Trim-cent. Vent		Appelez-nous	-
17	3016293		Button-clock		Appelez-nous	-
18	3016292		Knob-clock		Appelez-nous	-
19	3202414		Glass-const. Panel		Appelez-nous	-
20	3202418		Housing-cont		Appelez-nous	-
21	3202417		Cover-cont Housing		Appelez-nous	-
22	3051098		Block Terminal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
