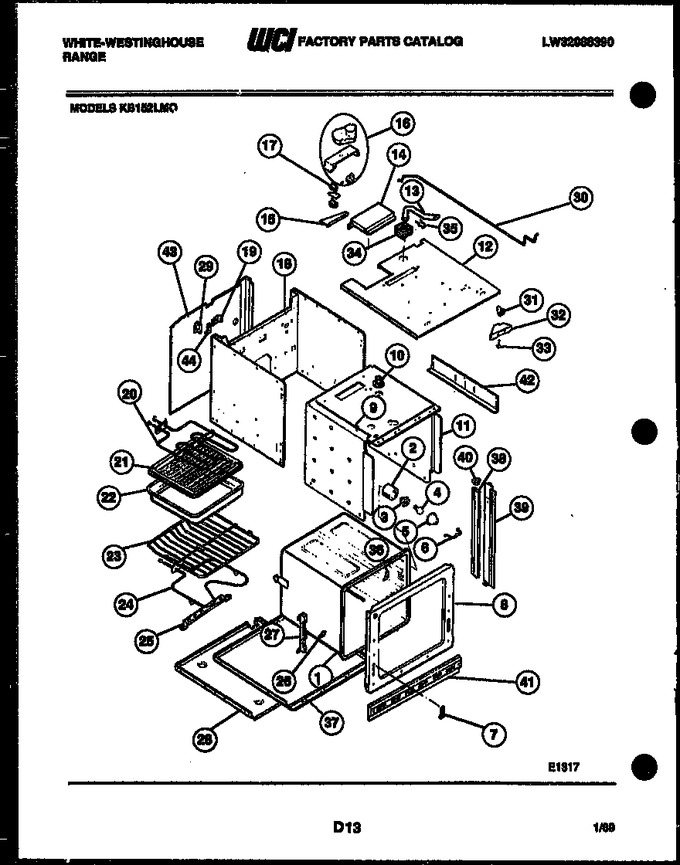

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202451 | Liner-oven |
|
- | |||||
| 2 | 3016243 | Tube - Oven Light |
|
- | |||||
| 3 | 08011085 | Receptacle |
|
- | |||||
| 4 | 3013071 | Bulb |
|
- | |||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 6 | 3016244 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 3202449 | Frame-front |
|
- | |||||
| 9 | 3202077 | Rod-switch |
|
- | |||||
| 10 | 3016245 | Vent-tube Assembly |
|
- | |||||
| 11 | 3202445 | Shield-wool |
|
- | |||||
| 12 | 3202450 | Wrapper-top |
|
- | |||||
| 13 | 3016301 | Duct - Vent Tube |
|
- | |||||
| 14 | 3016296 | Cover-motor |
|
- | |||||
| 15 | 3016276 | Bracket-motor Mtg |
|
- | |||||
| 16 | 3016242 | Motor-latch Assembly |
|
- | |||||
| 17 | 3202430 | Switch, Lock (2) |
|
- | |||||
| 18 | 3202448 | Wrapper |
|
- | |||||
| 19 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 20 | 3016247 | Element-broil |
|
- | |||||
| 21 | 3019066 | Insert-broiler Pan |
|
- | |||||
| 22 | 3018808 | Pan-broiler |
|
- | |||||
| 23 | 3202442 | Rack-regular |
|
- | |||||
| 23 | 3202443 | Rack-offset |
|
- | |||||
| 24 | 318255101 | Element-brake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 25 | 3016248 | Support, Broil Element |
|
- | |||||
| 26 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 27 | 3201631 | Hinge Assembly (2) |
|
$ 58.22 | |||||
| 28 | 3202447 | Wrapper-base |
|
- | |||||
| 29 | 3202451 | Switch |
|
- | |||||
| 30 | 3016241 | Rod |
|
- | |||||
| 31 | 3202387 | Latch |
|
- | |||||
| 32 | 3019069 | Housing-latch |
|
- | |||||
| 33 | 08012004 | Axle-latch |
|
- | |||||
| 34 | 3016302 | Insulation - Vent |
|
- | |||||
| 35 | 3016303 | Clip-insul Retainer |
|
- | |||||
| 36 | 3202082 | Cover Seam |
|
- | |||||
| 37 | 3202446 | Shield-insulation |
|
- | |||||
| 38 | 3016280 | Trim, Inner, Lh |
|
- | |||||
| 38 | 3016279 | Trim, Inner, Rh |
|
- | |||||
| 39 | 3202275 | Trim-side Outer (2) |
|
- | |||||
| 40 | 3016307 | Trim-cap (2) |
|
- | |||||
| 41 | 3202237 | Trim-base |
|
- | |||||
| 42 | 3016278 | Support-height Adjustment (2) |
|
- | |||||
| 43 | 3202444 | Cover-wire |
|
- | |||||
| 44 | 3202384 | Bracket - Switch Mtg |
|
- | |||||
| *48722 | 3019048 | Insulation-wrap |
|
- | |||||
| *48722 | 3202441 | Insulation-back |
|
- | |||||
| *48723 | 3131060 | Clip Capillary (2) |
|
- |
