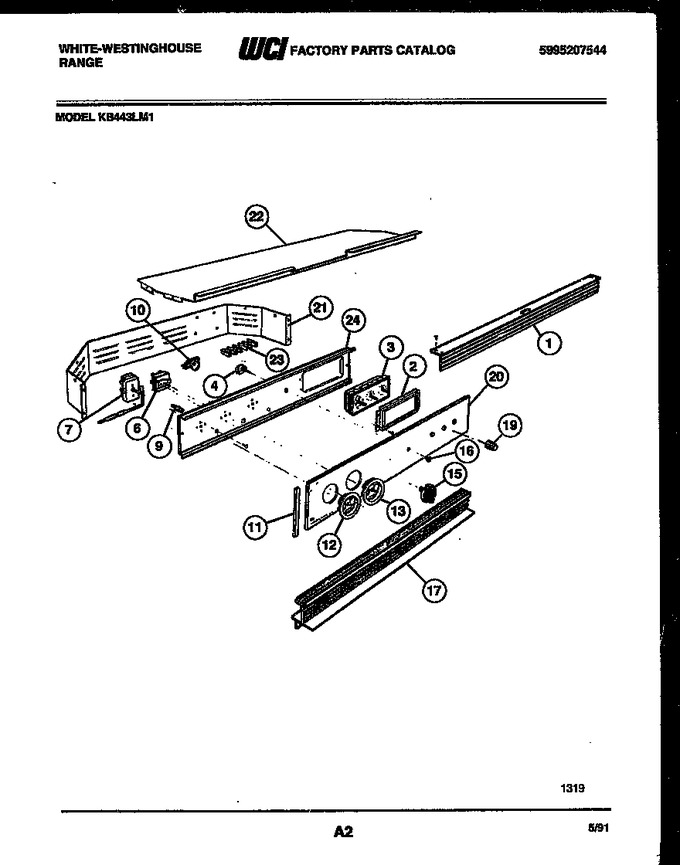

02 - Control Panel
03 - Body Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202253 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202277 | Clock |
|
- | |||||
| 4 | 5308003383 | Switch-light |
|
- | |||||
| 6 | 3202279 | Switch-select |
|
$ 181.86 | |||||
| 7 | 3202280 | Thermostat |
|
- | |||||
| 9 | 3015355 | Light-indicator Oven |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202094 | Trim-cntrl Pnl Gl (2) |
|
- | |||||
| 12 | 5303202097 | Escutcheon-therm |
|
- | |||||
| 13 | 3202284 | Escutcheon-sel Sw |
|
- | |||||
| 15 | 5303202098 | Knob (2) |
|
- | |||||
| 16 | 5303016305 | Bezel - Switch |
|
- | |||||
| 17 | 5303202101 | Trim-center Vent |
|
- | |||||
| 19 | 3202285 | Knob-clock (3) |
|
- | |||||
| 20 | 3202286 | Glass-control Panel |
|
- | |||||
| 21 | 3016250 | Housing, Control |
|
- | |||||
| 22 | 3016309 | Cover-control Housing |
|
- | |||||
| 23 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 24 | 3202146 | Plate-instr Mtg |
|
- |
