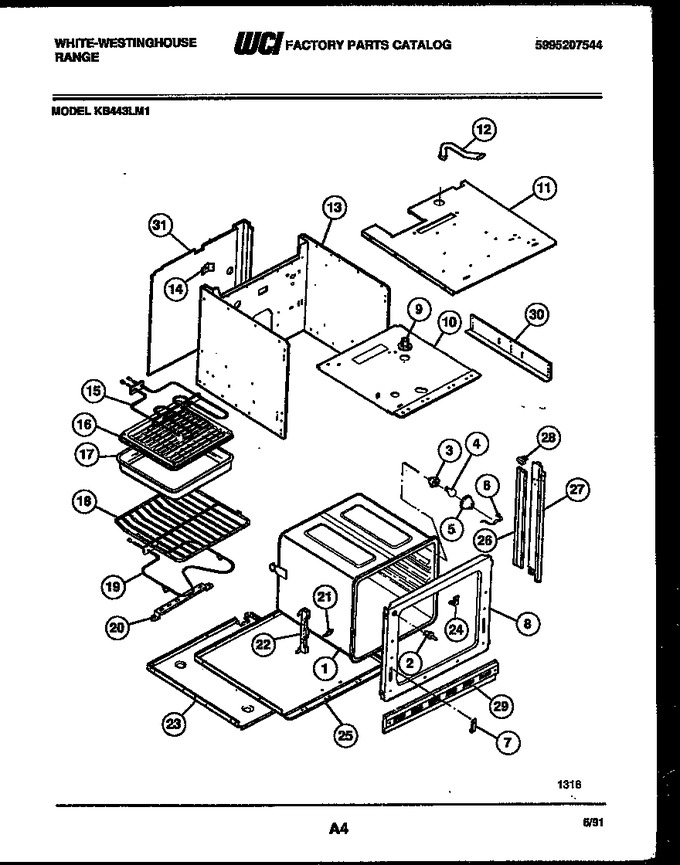

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202287		Liner-oven		Appelez-nous	-
2	5301314211						$ 95.29
3	316116400		Receptacle   (Replaces: 5308011085)			Immediately	$ 56.10
4	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
5	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	3202083		Frame-front		Appelez-nous	-
9	5303206498		Vent Tube Assy		Appelez-nous	-
10	3202304		Shield-wool		Appelez-nous	-
11	3202306		Wrapper, Top		Appelez-nous	-
12	3016301		Duct - Vent Tube		Appelez-nous	-
13	3016275		Wrapper		Appelez-nous	-
14	3016281		Sprinig-oven (2)		Appelez-nous	-
15	5303016247		Element, Broil				$ 223.97
16	3205234		Insert, Broiler Pan		Appelez-nous	-
17	3205539		Pan, Broiler		Appelez-nous	-
18	5303016315		Rack-regular (2)		Appelez-nous	-
19	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
20	3016248		Support-broil Elmnt		Appelez-nous	-
21	3201632		Spacer, Oven (2)		Appelez-nous	-
22	3201631		Hinge - Assy (2)				$ 58.22
23	3016277		Wrapper, Base		Appelez-nous	-
24	3202082		Cover Seam		Appelez-nous	-
25	3016273		Shield, Insulation		Appelez-nous	-
26	3016279		Trim, Inner, Rh		Appelez-nous	-
27	3202275		Trim-side Outer (2)		Appelez-nous	-
28	3016307		Trim-cap (2)		Appelez-nous	-
29	5303016283		Trim-base		Appelez-nous	-
30	3016278		Support - Height Adj		Appelez-nous	-
31	3016314		Cover, Wire		Appelez-nous	-
*46681	3016323		Insulation-wrap		Appelez-nous	-
*46682	19100180205		Wiring Diagram (not For Purchase)		Appelez-nous	-
*46682	3016319		Insulation-back		Appelez-nous	-
*46682	5300009126		Clip		Appelez-nous	-
*46682	3016313		Plug Button		Appelez-nous	-
26A	3016280		Trim, Inner, Lh		Appelez-nous	-
