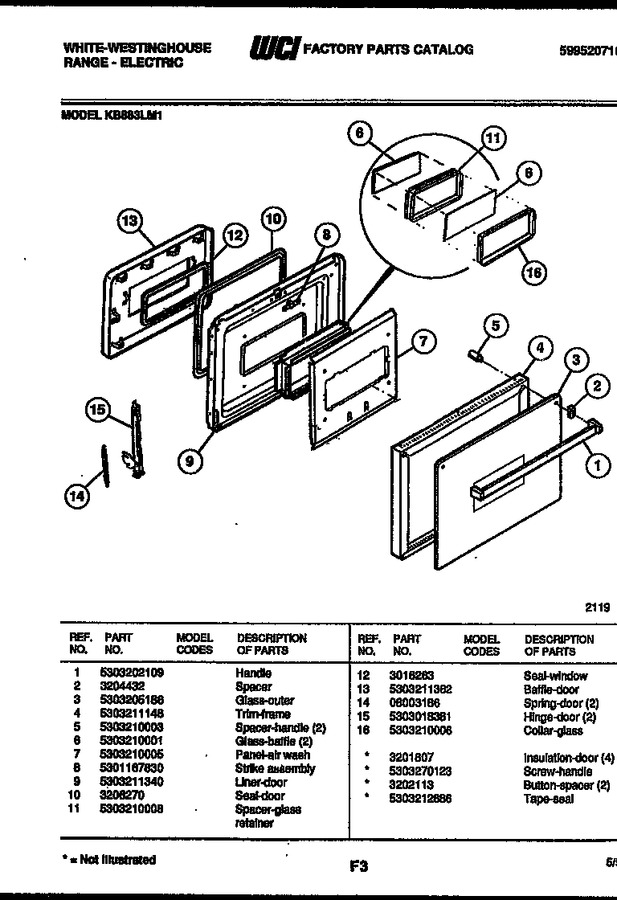

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202109 | Handle |
|
- | |||||
| 2 | 3204432 | Spacer |
|
- | |||||
| 3 | 5303205186 | Glass-outer |
|
- | |||||
| 4 | 5303211148 | Trim - Frame |
|
- | |||||
| 5 | 5303210003 | Spacer - Handle (2) |
|
- | |||||
| 6 | 5303210001 | Glass - Baffle (2) |
|
- | |||||
| 7 | 5303210005 | Panel - Air Wash |
|
- | |||||
| 8 | 5301167830 | Strike, Assembly |
|
- | |||||
| 9 | 5303211340 | Liner - Door |
|
- | |||||
| 10 | 3206270 | Seal - Door |
|
- | |||||
| 11 | 5303210008 | Spacer-glass Retainer |
|
- | |||||
| 12 | 3016263 | Seal - Window |
|
$ 66.15 | |||||
| 13 | 5303211362 | Baffle - Door |
|
- | |||||
| 14 | 08003186 | Spring-door (2) |
|
- | |||||
| 15 | 5303018381 | Hinge - Door (2) |
|
$ 145.85 | |||||
| 16 | 5303210006 | Collar - Glass |
|
- | |||||
| *46422 | 3202113 | Button - Spacer (2) |
|
- | |||||
| *46422 | 5303270123 | Screw Handle |
|
- | |||||
| *46422 | 3201807 | Insulation - Door (4) |
|
- | |||||
| *46422 | 5303212886 | Tape-seal |
|
- |
