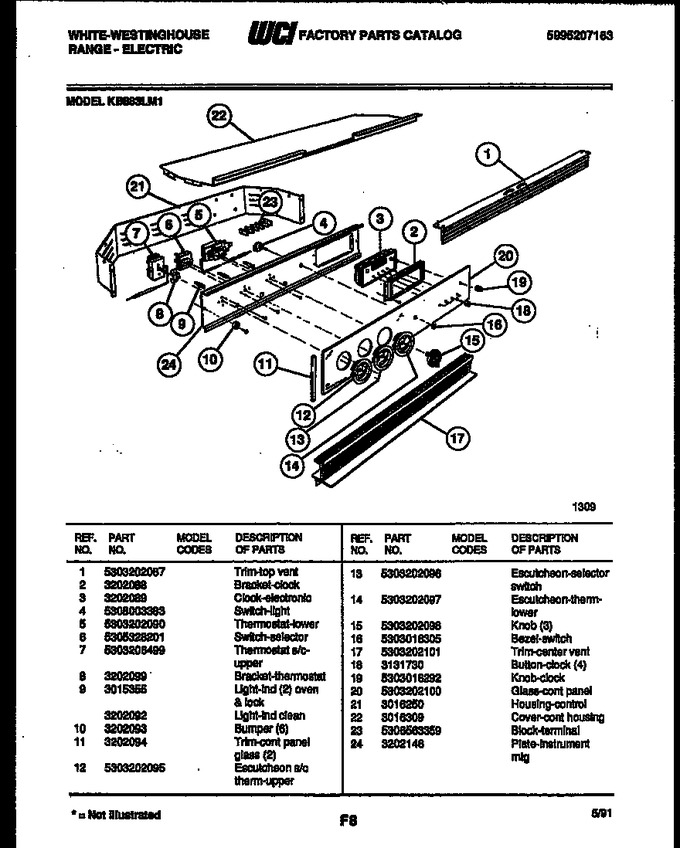

06 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202087 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock-electronic |
|
- | |||||
| 4 | 5308003383 | Switch-light |
|
- | |||||
| 5 | 5303202090 | Thermostat-lower |
|
- | |||||
| 6 | 5305328201 | Switch-selector |
|
- | |||||
| 7 | 5303206499 | Thermostat S/c-upper |
|
- | |||||
| 8 | 3202099 | Bracket-thermostat |
|
- | |||||
| 9 | 3015355 | Light-ind. (2) Oven & Lock |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202094 | Trim-cont. Panel Glass (2) |
|
- | |||||
| 12 | 5303202095 | Escutcheon S/c Therm-upper |
|
- | |||||
| 13 | 5303202096 | Escutcheon-selector Switch |
|
- | |||||
| 14 | 5303202097 | Escutcheon-therm-lower |
|
- | |||||
| 15 | 5303202098 | Knob (3) |
|
- | |||||
| 16 | 5303016305 | Bezel - Switch |
|
- | |||||
| 17 | 5303202101 | Trim-center Vent |
|
- | |||||
| 18 | 3131730 | Button-clock (4) |
|
- | |||||
| 19 | 5303016292 | Knob-clock |
|
- | |||||
| 20 | 5303202100 | Glass-cont Panel |
|
- | |||||
| 21 | 3016250 | Housing, Control |
|
- | |||||
| 22 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 23 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 24 | 3202146 | Plate-instrument Mtg |
|
- | |||||
| 9A | 3202092 | Light-ind. Clean |
|
- |
