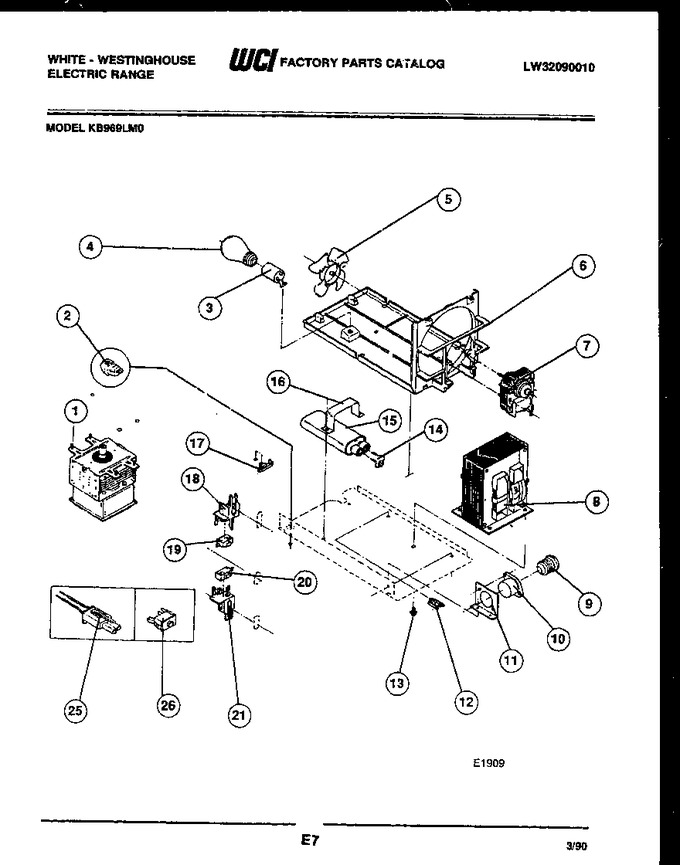

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206781 | Magnetron |
|
- | |||||
| 2 | 3091558 | Grommet Wire |
|
- | |||||
| 3 | 5303091197 | Socket-oven Light |
|
- | |||||
| 4 | 5308037902 | Light Bulb |
|
- | |||||
| 5 | 5303203192 | Fan-blade |
|
- | |||||
| 6 | 5303012194 | Duct - Air (foam) |
|
- | |||||
| 7 | 5308037636 | Motor-fan |
|
- | |||||
| 8 | 5308037626 | Transformer |
|
- | |||||
| 9 | 5308012055 | Socket-fuse |
|
- | |||||
| 10 | 5303200606 | Fuse 20 Amp. |
|
- | |||||
| 11 | 5308008973 | Angle-fuse Mtg |
|
- | |||||
| 12 | 5308037677 | Fastnr-wire Clip (3) |
|
- | |||||
| 13 | 5303013944 | Screw, Transformer (4) |
|
- | |||||
| 14 | 5303091303 | Diode High Voltage |
|
- | |||||
| 15 | 5303011660 | Capacitor - High |
|
- | |||||
| 16 | 5303013773 | Retainer-capacitor Mtg |
|
- | |||||
| 17 | 5303091280 | Fuse-thermal |
|
- | |||||
| 18 | 5303011556 | Brkt-switch-upper |
|
- | |||||
| 19 | 5303203636 | Switch, Interlock |
|
- | |||||
| 20 | 5303203636 | Switch, Interlock |
|
- | |||||
| 21 | 5303011556 | Bracket-switch (lower) |
|
- | |||||
| 25 | 5303206755 | Plug-disconn (male) |
|
- | |||||
| 26 | 5303201602 | Switch-monitor |
|
- | |||||
| *27835 | 5303206757 | Harness-main |
|
- | |||||
| *27835 | 5303206756 | Harness-power Supply |
|
- | |||||
| 7A | 5308014502 | Scrw 6-32 X 1-1/8 Ph. Tr. Sems (non-illustrated) |
|
- | |||||
| 7B | 5303013273 | Nut-6-32 Mtr Mtg (2) (non-illustrated) |
|
- |
