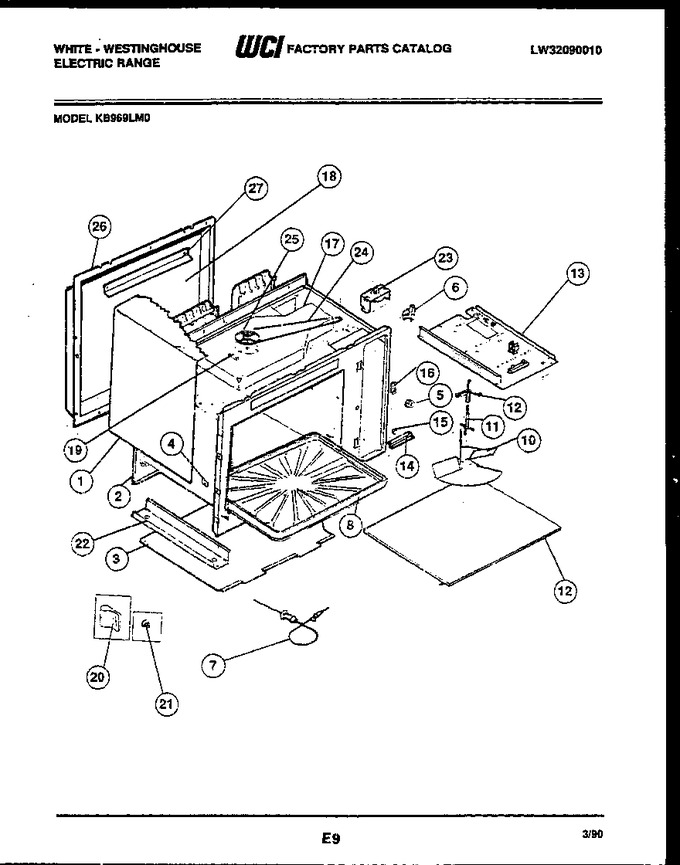

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209159		Wrapper - Top & Sides		Appelez-nous	-
3	3014060		Shield-oven Bottom		Appelez-nous	-
4	3203010		Fastnr-hng Clips   (Replaces: 5303012323)				$ 14.89
5	5303013283		Nut-recept Mtg		Appelez-nous	-
6	5303013702		Receptacle Probe		Appelez-nous	-
7	5303011684		Probe		Appelez-nous	-
8	5303011698		Tray, Oven		Appelez-nous	-
9	5303200554		Cover Stirrer		Appelez-nous	-
10	5303012284		Fan-stirrer		Appelez-nous	-
11	5303202875		Support-stirrer		Appelez-nous	-
12	5303011826		Collar-stirrer		Appelez-nous	-
13	5303018904		Channel-base Rh		Appelez-nous	-
14	5303011555		Bracket-control-mounting-lower		Appelez-nous	-
15	5308037644		Grommet-door		Appelez-nous	-
16	5303200551		Bezel-latch (2)		Appelez-nous	-
17	5303011667		Duct-air (foam)		Appelez-nous	-
18	3091338		Cover-lt Access		Appelez-nous	-
19	5308014510		Spacer - Wrapper		Appelez-nous	-
20	5303012322		Fastnr-wrapper Clip (2)		Appelez-nous	-
21	5308037665		Plug-button Tray (2)		Appelez-nous	-
22	5303011773		Channel Base, Lh		Appelez-nous	-
23	5303206759		Motor-stirrer		Appelez-nous	-
24	5303011495		Belt-stirrer				$ 23.31
25	5303013647		Pulley-stirrer		Appelez-nous	-
26	5303203692		Shield-rear Wall		Appelez-nous	-
27	3091058		Angle-air Baffle		Appelez-nous	-
*27840	5308037664		Plug Button (rack)		Appelez-nous	-
*27840	5303013626		Plug Button (browner)		Appelez-nous	-
*27840	5303011685		Shield - Oven Lt		Appelez-nous	-
*27840	5303091565		Plate-switch Cover		Appelez-nous	-
22A	5308037640		Duct-air (foam) (non-illustrated)		Appelez-nous	-
22B	5303018849		Label-cook Guide (non-illustrated)		Appelez-nous	-
22C	5303014620		Washer Stirrer (non-illustrated)		Appelez-nous	-
