02 - Control Panel


03 - Body Parts


04 - Wrapper And Body Parts


05 - Door Parts


06 - Door Parts


07 - Power Control


08 - Body Parts


09 - Control Panel

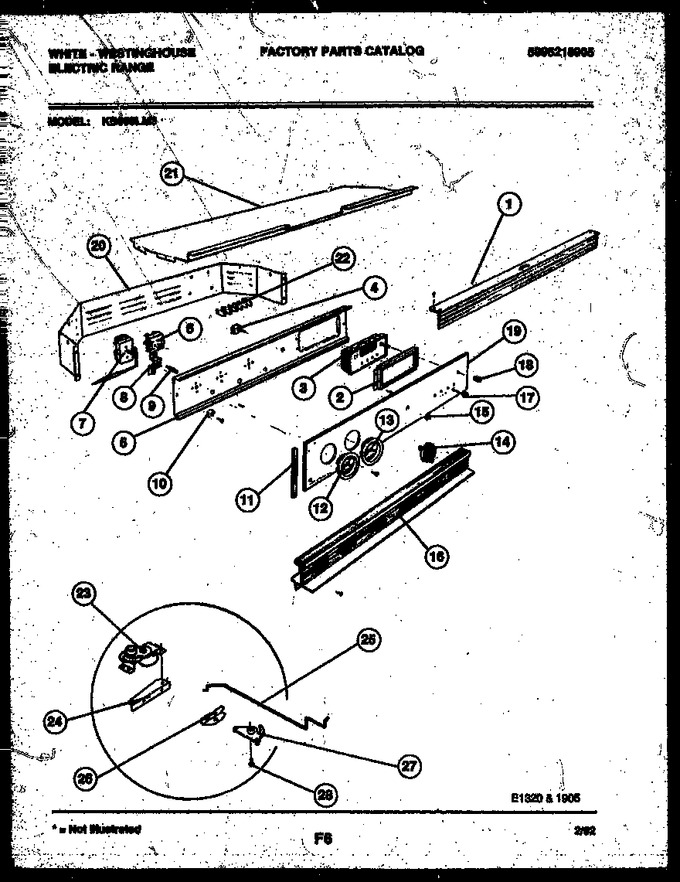

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209178		Trim - Top Vent		Appelez-nous	-
2	3202088		Bracket-clock		Appelez-nous	-
3	3202089		Clock		Appelez-nous	-
4	5303279413		Switch-light		Appelez-nous	-
5	3202146		Plate-inst Mtg		Appelez-nous	-
6	5305328201		Switch-selector		Appelez-nous	-
7	5303206499		Thermostat		Appelez-nous	-
8	3202099		Bracket-thermostat		Appelez-nous	-
9	3015355		Light-ind Oven		Appelez-nous	-
10	3202093		Bumper (6)		Appelez-nous	-
11	3202094		Trim-cont. Panel Glass (2)		Appelez-nous	-
12	5303202095		Excutcheon - Therm.		Appelez-nous	-
13	5303202096		Excutcheon - Sel. Sw.		Appelez-nous	-
14	5303202098		Knob (2)		Appelez-nous	-
15	5303016305		Bezel - Switch		Appelez-nous	-
16	5303202101		Trim - Cent. Vent		Appelez-nous	-
17	3131730		Button - Clock		Appelez-nous	-
18	5303016292		Knob-clock		Appelez-nous	-
19	3202257		Glass - Const. Panel		Appelez-nous	-
20	5303206742		Housing-cont		Appelez-nous	-
21	3016309		Cover - Cont Housing		Appelez-nous	-
22	5304409888		Block, Terminal   (Replaces: 5306563359)			Immediately	$ 26.69
23	5303016242		Motor-latch Assy		Appelez-nous	-
24	3016276		Base Motor Mtg		Appelez-nous	-
25	3016241		Rod-lock Mech		Appelez-nous	-
26	3019074		Housing-latch		Appelez-nous	-
27	3202387		Latch, Door		Appelez-nous	-
28	5308012004		Axle-latch				$ 8.29
*59561	5303206740		Trim Mtg. Bracket		Appelez-nous	-
*59561	5303209198		Recpetacle & Wire		Appelez-nous	-
9A	3202092		Light-ind. Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
