View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Body Parts
04 - Wrapper And Body Parts
05 - Door Parts
06 - Door Parts
07 - Power Control
08 - Body Parts
09 - Control Panel
SELECT A DIAGRAM
New Model Search:

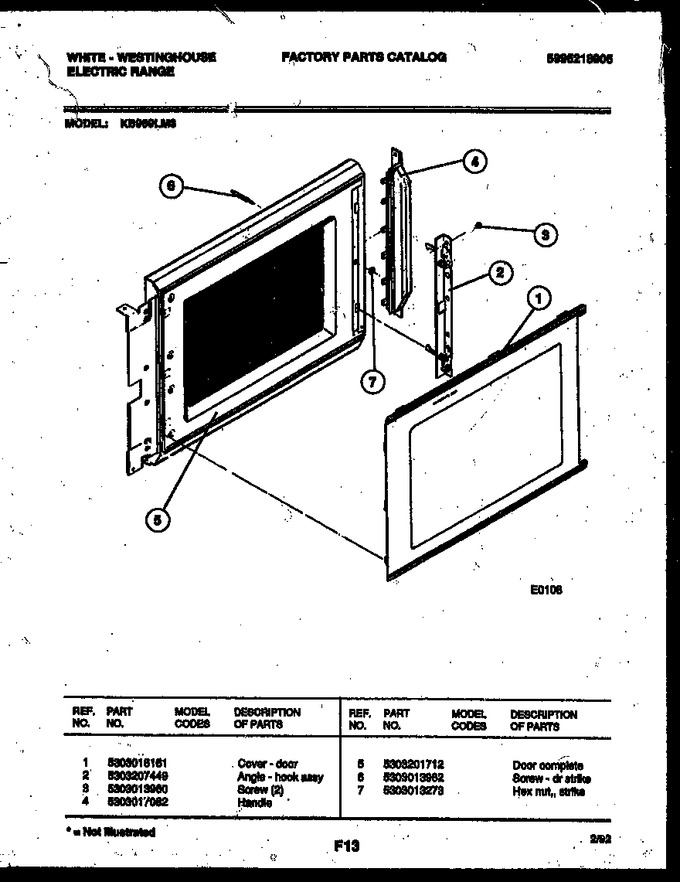

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303016161 | Cover-door |
|
- | |||||
| 2 | 5303207449 | Angle Hook Assy |
|
- | |||||
| 3 | 5303013960 | Screw (2) |
|
- | |||||
| 4 | 5303017082 | Handle |
|
- | |||||
| 5 | 5303201712 | Door Complete |
|
- | |||||
| 6 | 5303013962 | Screw-dr Strike |
|
- | |||||
| 7 | 5303013273 | Hex Nut-strike |
|
- |
