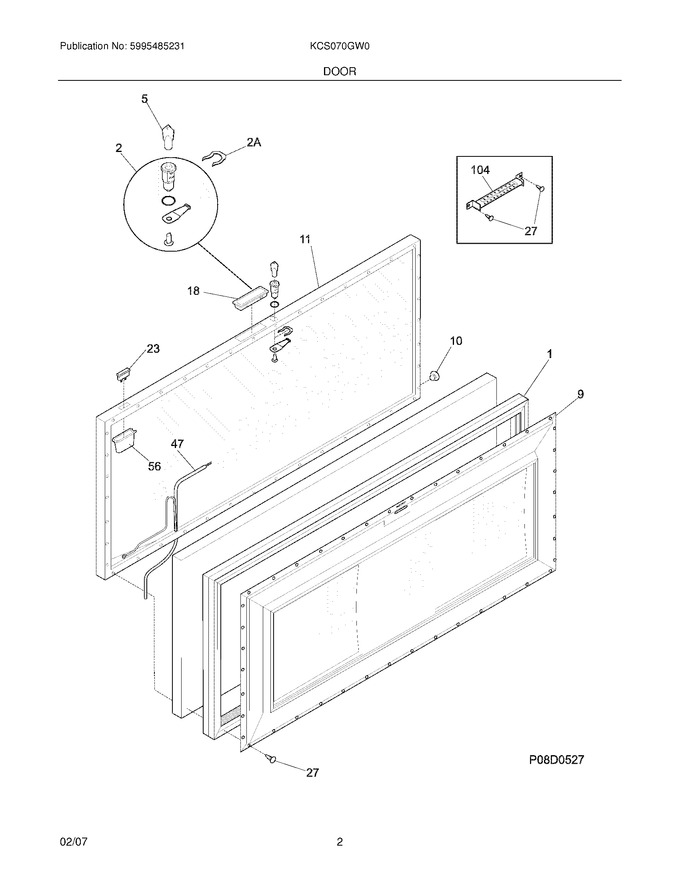

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480901		Gasket,door Seal ,white				$ 107.26
2	297090200		Lock Assy				$ 27.04
9	216067304		Panel-inner Lid		Appelez-nous	-
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216113125		Panel-lid				$ 299.25
18	297034202		Handle,recessed ,chrome ,w/gasket				$ 39.43
23	297087400		Light,signal ,amber		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
47	216823700		Harness-lid/defrost				$ 62.21
56	297015600		Cap,sig Light Seal		Appelez-nous	-
104	297074200		Thermometer		Appelez-nous	-
2A	297090900		Clip,spring				$ 10.85
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216858000		Screw,thno.8-18x.500ab,no.10		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
