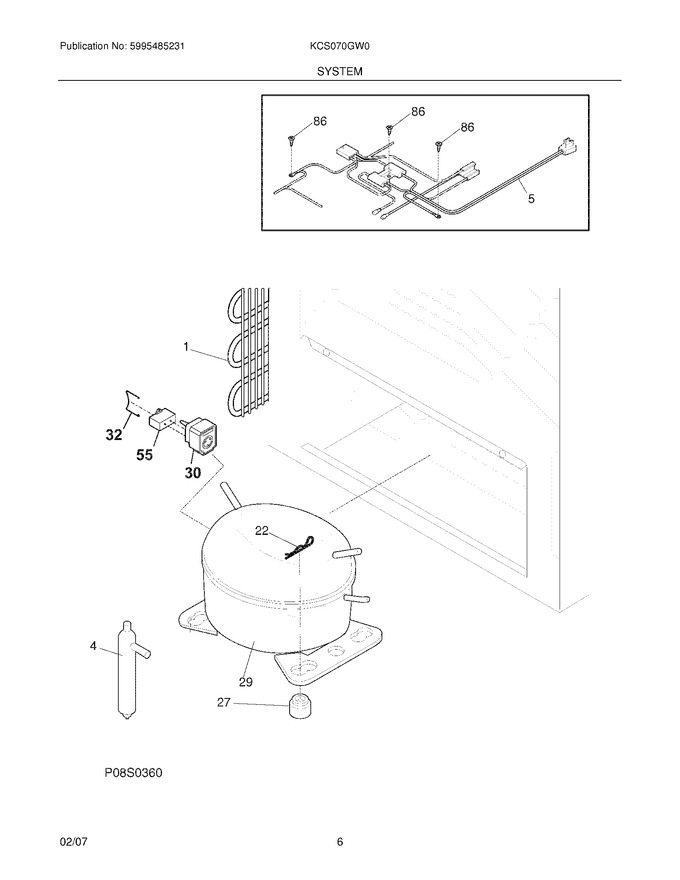

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954210 | Controller |
|
$ 85.05 | |||||
| 32 | 216649100 | Clamp,elec Cont Mtg ,compressor |
|
$ 12.50 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909913) |
|
Immediately | $ 35.38 | ||||
| 86 | 216707700 | Screw,8-18 X 1/2 |
|
- | |||||
| F1 | 5300120780 | Condenser |
|
- | |||||
| F29 | 5304507765 | Compressor,w/o Electricals (Replaces: 297068200) |
|
Immediately | $ 677.23 | ||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 31.67 | ||||
| F5 | 297034300 | Harness-main |
|
$ 68.52 | |||||
| NI | 216707800 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- | |||||
| NI | 216232700 | Washer,flat ,1``od X 0.531``id |
|
- |
