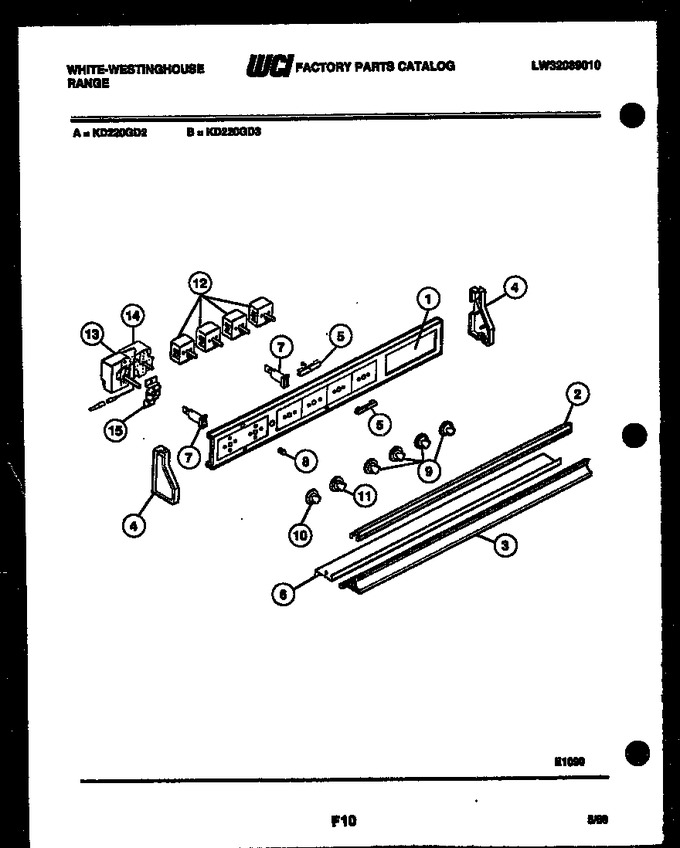

02 - Door Parts
03 - Cooktop And Broiler Parts
04 - Control Panel
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K005089501 | Panel-control |
|
- | |||||
| 2 | 08003296 | Rail-top |
|
- | |||||
| 3 | 08003670 | Rail-bottom |
|
- | |||||
| 4 | 08003298 | Cap-end (rh) |
|
- | |||||
| 5 | 3051535 | Brkt-upper Contl Pnl |
|
- | |||||
| 6 | 08010074 | Deflector-heat |
|
- | |||||
| 7 | K005005802 | Light-signal-surface Unit (2) |
|
- | |||||
| 8 | 08006417 | Lens |
|
- | |||||
| 9 | K005088101 | Knob-surface Unit (4) |
|
- | |||||
| 10 | K005088104 | Knob-thermostat |
|
- | |||||
| 11 | K005088107 | Knob-select. Sw. |
|
- | |||||
| 12 | 3051540 | Sw. Surface Unit-sm. (4) |
|
- | |||||
| 13 | 08015942 | Thermostat |
|
- | |||||
| 14 | 08016480 | Switch-selector |
|
- | |||||
| 15 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 4A | 08003299 | Cap-end (lh) |
|
- | |||||
| 5A | 3051536 | Brkt-lwr Cntl Pnl |
|
- |
